Florida Stereo 7.627.810, Ch= 7.626.100

Florida Stereo 7.627.810, Ch= 7.626.100; Blaupunkt Ideal, (ID = 327361) Radio Florida Stereo 7.627.810, Ch= 7.626.100; Blaupunkt Ideal, (ID = 2545803) Radio
Florida Stereo 7.627.810, Ch= 7.626.100; Blaupunkt Ideal, (ID = 2545804) Radio Florida Stereo 7.627.810, Ch= 7.626.100; Blaupunkt Ideal, (ID = 2545805) Radio
Florida Stereo 7.627.810, Ch= 7.626.100; Blaupunkt Ideal, (ID = 2545806) Radio Florida Stereo 7.627.810, Ch= 7.626.100; Blaupunkt Ideal, (ID = 2545807) Radio
Florida Stereo 7.627.810, Ch= 7.626.100; Blaupunkt Ideal, (ID = 2545808) Radio Florida Stereo 7.627.810, Ch= 7.626.100; Blaupunkt Ideal, (ID = 2545810) Radio
Florida Stereo 7.627.810, Ch= 7.626.100; Blaupunkt Ideal, (ID = 2545811) Radio Florida Stereo 7.627.810, Ch= 7.626.100; Blaupunkt Ideal, (ID = 2545812) Radio
Use red slider bar for more.
Florida Stereo 7.627.810, Ch= 7.626.100; Blaupunkt Ideal, (ID = 327361) Radio

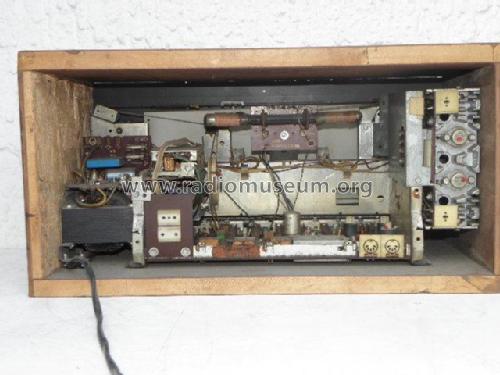

Blaupunkt Ideal,: Florida Stereo 7.627.810, Ch= 7.626.100 [Radio] ID = 327361 340x271
Select picture or schematic to display from thumbnails on the right and click for download.
For model Florida Stereo 7.627.810, Ch= 7.626.100, Blaupunkt (Ideal), Berlin, später Hildesheim

Country:  Germany
Manufacturer / Brand:  Blaupunkt (Ideal), Berlin, später Hildesheim
alternative name

Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
Brand
Rotstern
Year: 1967/1968 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 22: AF106 AF201 BC108 AC153 AD161 AD162 AD149 AA112 AA119
Main principle Superheterodyne (common)
Tuned circuits 7 AM circuit(s)     12 FM circuit(s)
Wave bands Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 110; 127; 220; 240 Volt
Loudspeaker 4 Loudspeakers
Power out
from Radiomuseum.org Model: Florida Stereo 7.627.810, Ch= 7.626.100 - Blaupunkt Ideal, Berlin,
Material Wooden case
Shape Console with Push Buttons.
Dimensions (WHD) 1085 x 770 x 380 mm / 42.7 x 30.3 x 15 inch
Notes

Rundfunk-Spezialchassis = 7.626.100, Vollstereo, NF-Verstärker mit zwei Endstufen je 10 W;
Phono-Chassis = PE 72.

Jeder Halbleitertyp nur einmal gelistet.

Net weight (2.2 lb = 1 kg) 40 kg / 88 lb 1.7 oz (88.106 lb)
External source of data erb
Source of data Handbuch VDRG 1967/1968
