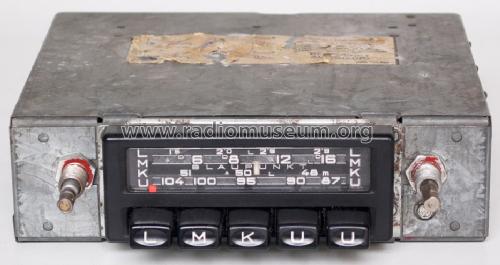

Frankfurt 7.637.600 ab Y 650001; Blaupunkt Ideal, (ID = 2391976) Car Radio
Blaupunkt Ideal,: Frankfurt 7.637.600 ab Y 650001 [Car Radio] ID = 2391976 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model Frankfurt 7.637.600 ab Y 650001, Blaupunkt (Ideal), Berlin, später Hildesheim

Country:  Germany
Manufacturer / Brand:  Blaupunkt (Ideal), Berlin, später Hildesheim
alternative name

Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
Brand
Rotstern
Year: 1967/1968 Category: Car Radio, perhaps also + sound player/recorder
Semiconductors (the count is only for transistors) 12: AF106 AF201 AF126 AF126 AF121 AF121 AF126 BC108 AC126 AC126 AD148 AD148 AA112 AA119 BA121 SIS20 Z1,5 0,7St60 1,4-St10
Main principle Superheterodyne (common); ZF/IF 460 or 452/10700 kHz; 4 AF stage(s)
Tuned circuits 8 AM circuit(s)     13 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 6; 12 Volt
Loudspeaker - This model requires external speaker(s).
Power out 4 W (unknown quality)
from Radiomuseum.org Model: Frankfurt 7.637.600 ab Y 650001 - Blaupunkt Ideal, Berlin,
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 178 x 50 x 147 mm / 7 x 2 x 5.8 inch
Notes

7x AA112, 2x AA119; Diode X466 = E295 ZZ01 im Schaltplan, aber nicht in der Stückliste.
Ausgangsleistung bei 12 V = 5 W; Omnimat-Wählautomatik.

Net weight (2.2 lb = 1 kg) 1.8 kg / 3 lb 15.4 oz (3.965 lb)
Price in first year of sale 360.00 DM
External source of data erb
Source of data Handbuch VDRG 1967/1968
