• Country
• Germany

• Manufacturer / Brand
• Blaupunkt (Ideal), Berlin, später Hildesheim

• Year
• 1969/1970

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 132624

• • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
  • Brand: Rotstern

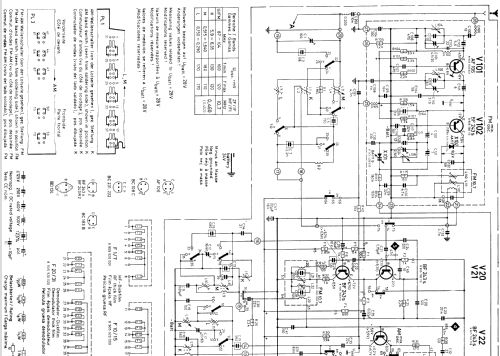

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 14

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 24 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Metal case

• from Radiomuseum.org
• Model: Frankfurt 24V 7.639.630 ab 480001 - Blaupunkt Ideal, Berlin,

• Shape
• Chassis only or for «building in»

• Notes
• Das Blaupunkt Autoradio Frankfurt 24 V ist nur für den Betrieb an 24 Volt-Anlagen, Minus an Masse ausgelegt. Abweichend von den bisherigen Frankfurt-Typen kommen neue Bauteile zur Verwendung: 3 Dickfilme und eine transformatorlose Endstufe.

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Jürgen Küting. See "Data change" for further contributors.
