Frankfurt 7.632.641.210

• Country
• Germany

• Manufacturer / Brand
• Blaupunkt (Ideal), Berlin, später Hildesheim

• Year
• 1975 ?

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 183919

• • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
  • Brand: Rotstern

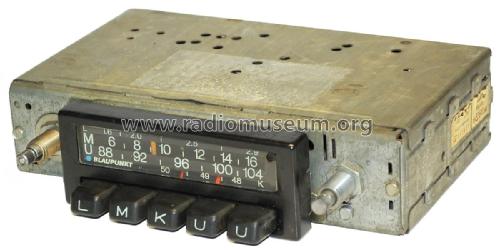

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Metal case

• from Radiomuseum.org
• Model: Frankfurt 7.632.641.210 - Blaupunkt Ideal, Berlin,

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 179 x 43 x 125 mm / 7 x 1.7 x 4.9 inch

• Net weight (2.2 lb = 1 kg)
• 1.135 kg / 2 lb 8 oz (2.5 lb)

• Source of data
• - - Data from my own collection

• Author
• Model page created by Marc Gianella. See "Data change" for further contributors.
