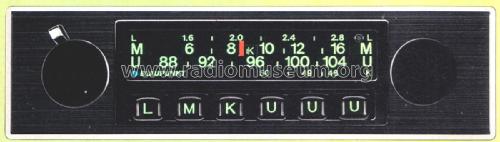

Frankfurt 7.636.642.010; Blaupunkt Ideal, (ID = 460813) Car Radio
Blaupunkt Ideal,: Frankfurt 7.636.642.010 [Car Radio] ID = 460813 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model Frankfurt 7.636.642.010, Blaupunkt (Ideal), Berlin, später Hildesheim

Country:  Germany
Manufacturer / Brand:  Blaupunkt (Ideal), Berlin, später Hildesheim
alternative name

Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
Brand
Rotstern
Year: 1977/1978 Category: Car Radio, perhaps also + sound player/recorder
Semiconductors (the count is only for transistors) 23:
Main principle Superheterodyne (common)
Tuned circuits 7 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
Loudspeaker - This model requires external speaker(s).
Power out 5 W (unknown quality)
from Radiomuseum.org Model: Frankfurt 7.636.642.010 - Blaupunkt Ideal, Berlin,
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 179 x 43 x 107 mm / 7 x 1.7 x 4.2 inch
Notes

6 Dickschichtschaltungen, 1 ZF-Aktiv-Hybrid-Baustein.

Siehe auch Frankfurt 7.636.642.

Source of data Handbuch VDRG 1977/1978

Model page created by Bernd P. Kieck. See "Data change" for further contributors.
