Frankfurt ATR US ab U 510001
Blaupunkt (Ideal), Berlin, später Hildesheim
- Country
- Germany
- Manufacturer / Brand
- Blaupunkt (Ideal), Berlin, später Hildesheim
- Year
- 1963/1964
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 25018
-
- alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
- Brand: Rotstern
Bild aus Servicedoku.
PL2 Board, connected between aerial and PL6

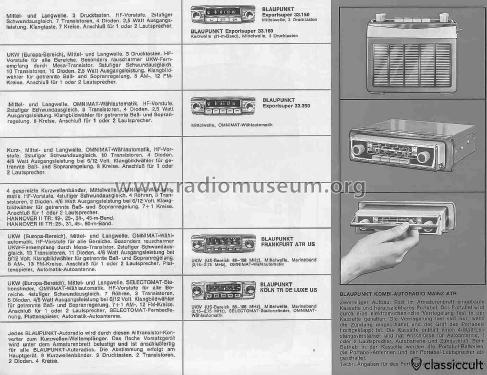

Blaupunkt Sales Brochure
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 13
- Main principle
- Superhet, double/triple conversion; ZF/IF 460 or 452/10700 kHz
- Tuned circuits
- 8 AM circuit(s) 13 FM circuit(s)
- Wave bands
- Broadcast, Short Wave plus FM or UHF.
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 6; 12 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Metal case
- from Radiomuseum.org
- Model: Frankfurt ATR US ab U 510001 - Blaupunkt Ideal, Berlin,
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 183 x 60 x 199 mm / 7.2 x 2.4 x 7.8 inch
- Notes
- Transistoren teilweise mehrfach vorhanden.
Technische Daten wie Frankfurt ATR, jedoch erweiterter UKW-Bereich (88-108 MHz) sowie statt LW-Bereich Marineband (2,15-2,75 MHz).
- Net weight (2.2 lb = 1 kg)
- 2.850 kg / 6 lb 4.4 oz (6.278 lb)
- Price in first year of sale
- 365.00 DM
- External source of data
- Erb
- Source of data
- Handbuch VDRG 1963/1964
- Literature/Schematics (1)
- -- Original-techn. papers.
