• Country
• Germany

• Manufacturer / Brand
• Blaupunkt (Ideal), Berlin, später Hildesheim

• Year
• 1976–1978

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 81837

• • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
  • Brand: Rotstern

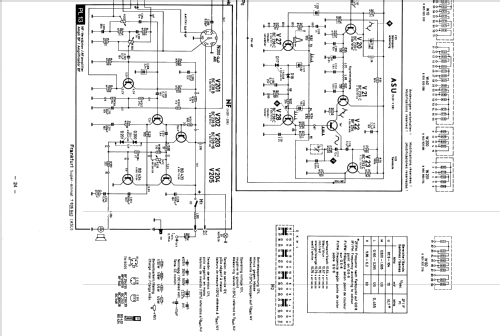

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 36

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Tuned circuits
• 7 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 5 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org
• Model: Frankfurt Super Arimat 7.636.643.010 - Blaupunkt Ideal, Berlin,

• Shape
• Chassis only or for «building in»

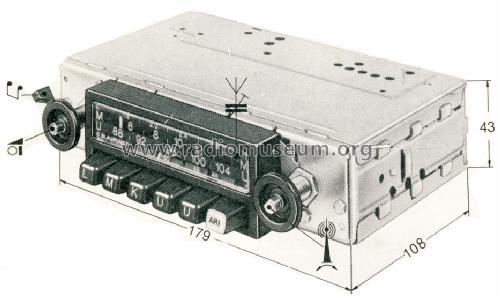

• Dimensions (WHD)
• 180 x 45 x 125 mm / 7.1 x 1.8 x 4.9 inch

• Notes
• ICs: 2.

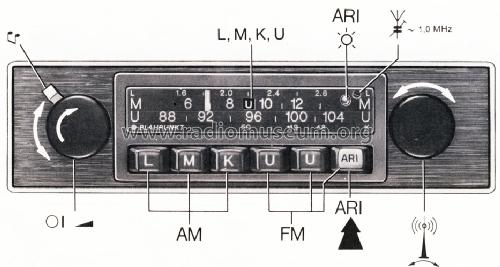

  Permeabilitätsabstimmung; sechs mechanisch programmierbare Stationstasten (davon drei UKW-Tasten inkl. einer orangen "Info"-Taste).

• Net weight (2.2 lb = 1 kg)
• 1.5 kg / 3 lb 4.9 oz (3.304 lb)

• Source of data
• Handbuch VDRG 1977/1978

• Author
• Model page created by a member from D. See "Data change" for further contributors.
