Frankfurt US 7.639.670 ab 1800001; Blaupunkt Ideal, (ID = 431423) Car Radio
Blaupunkt Ideal,: Frankfurt US 7.639.670 ab 1800001 [Car Radio] ID = 431423 786x425
Select picture or schematic to display from thumbnails on the right and click for download.
For model Frankfurt US 7.639.670 ab 1800001, Blaupunkt (Ideal), Berlin, später Hildesheim:
Q: Blaupunkt Service

Country:  Germany
Manufacturer / Brand:  Blaupunkt (Ideal), Berlin, später Hildesheim
alternative name

Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
Brand
Rotstern
Year: 1970/1971 Category: Car Radio, perhaps also + sound player/recorder
Semiconductors (the count is only for transistors) 11: AF106 BF185 BF243 BF243 BF243 BF243 BF243 BC108 AC163 AD161 AD162
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 8 AM circuit(s)     12 FM circuit(s)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
Loudspeaker - This model requires external speaker(s).
Power out 5 W (unknown quality)
from Radiomuseum.org Model: Frankfurt US 7.639.670 ab 1800001 - Blaupunkt Ideal, Berlin,
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 178 x 50 x 147 mm / 7 x 2 x 5.8 inch
Notes

Erweiterter UKW-Bereich (87,5-108 MHz),
5 Drucktasten: 3× UKW, 2× MW;
Stadt/Land-Empfindlichkeitsumschalter;

Net weight (2.2 lb = 1 kg) 1.3 kg / 2 lb 13.8 oz (2.863 lb)
Mentioned in Handbuch VDRG 1970/1971

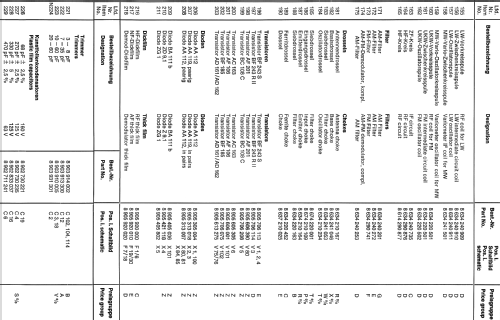

Literature/Schematics (1) -- Original-techn. papers.

Model page created by Eero Ukkola. See "Data change" for further contributors.
