• Country
• Germany

• Manufacturer / Brand
• Blaupunkt (Ideal), Berlin, später Hildesheim

• Year
• 1972

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 85715

• • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
  • Brand: Rotstern

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 10

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 460 kHz

• Tuned circuits
• 6 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• from Radiomuseum.org

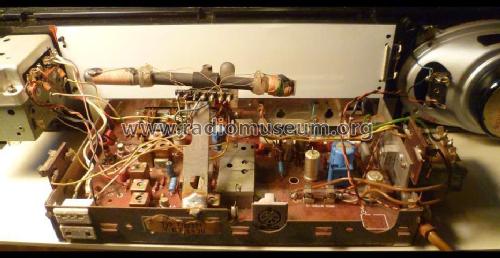

• Model: Genua 7.622.271 - Blaupunkt Ideal, Berlin,

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 510 x 125 x 170 mm / 20.1 x 4.9 x 6.7 inch

• Notes
• Transistoren: AF106, AF121, AF126, 3x AF201, BC238, BC308, AC194, AC193, Dioden: ZF7,5, 3x AA112,1N4148, Gleichrichter: B30C300, Ausgangsleistung: 2W.

• Net weight (2.2 lb = 1 kg)
• 3.5 kg / 7 lb 11.3 oz (7.709 lb)

• Mentioned in
• -- Original-techn. papers.

• Literature/Schematics (1)
• Radio es Televizio Vevö keszülekek 1972-75

• Author
• Model page created by Bernd Pötzsch. See "Data change" for further contributors.
