Granada Stereo 7.626.500

• Country
• Germany

• Manufacturer / Brand
• Blaupunkt (Ideal), Berlin, später Hildesheim

• Year
• 1966–1968

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 26467

• • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
  • Brand: Rotstern

• Picture
• Schematics

Previous Next

Previous Next

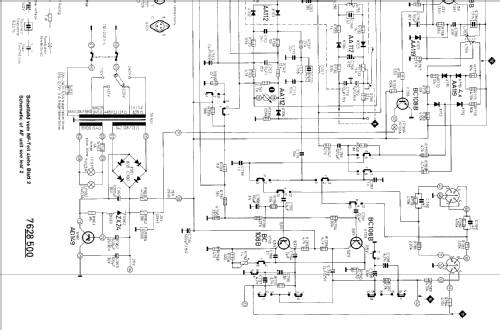

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 22

• Semiconductors
• AF106 AF201 AF201 AF201 BC108 BC108 BC108 AF201 AF201 AF201 AF201 BC108 BC108 AC153 AD161 AD162 BC108 BC108 AC153 AD161 AD162 AD149 AA112 AA119 ZX24 B30C700

• Main principle
• Superheterodyne (common); ZF/IF 460 or 452/10700 kHz

• Tuned circuits
• 7 AM circuit(s)     12 FM circuit(s)

• Wave bands
• Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220; 240 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Granada Stereo 7.626.500 - Blaupunkt Ideal, Berlin,

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 780 x 240 x 175 mm / 30.7 x 9.4 x 6.9 inch

• Notes

• Dioden teilweise mehrfach vorhanden.
  Stereo-Decoder eingebaut, Stereo-NF-Verstärker mit 2 Endstufen je 6 W, ein Lautsprecher als abgesetzte Box.

• Net weight (2.2 lb = 1 kg)
• 8.6 kg / 18 lb 15.1 oz (18.943 lb)

• External source of data
• erb

• Source of data
• Handbuch VDRG 1966/1967
