Hamburg 7.631.520 ab Nr.: 4130001; Blaupunkt Ideal, (ID = 2387879) Car Radio
Blaupunkt Ideal,: Hamburg 7.631.520 ab Nr.: 4130001 [Car Radio] ID = 2387879 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model Hamburg 7.631.520 ab Nr.: 4130001, Blaupunkt (Ideal), Berlin, später Hildesheim

Country:  Germany
Manufacturer / Brand:  Blaupunkt (Ideal), Berlin, später Hildesheim
alternative name

Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
Brand
Rotstern
Year: 1971 ? Category: Car Radio, perhaps also + sound player/recorder
Semiconductors (the count is only for transistors) 9: BF254 AF126 BF254 BF254 BC238 BC238 BC328 AD157 AD156
Main principle Super-Heterodyne (Super in general); ZF/IF 460 kHz
Tuned circuits 8 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
Loudspeaker - This model requires external speaker(s).
Power out 4 W (unknown quality)
from Radiomuseum.org Model: Hamburg 7.631.520 ab Nr.: 4130001 - Blaupunkt Ideal, Berlin,
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 179 x 43 x 115 mm / 7 x 1.7 x 4.5 inch
Notes 3-Kreis-Variometerabstimmung

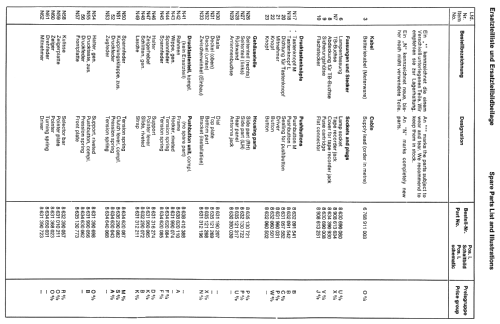

Mentioned in Original Blaupunkt Service Unterlagen

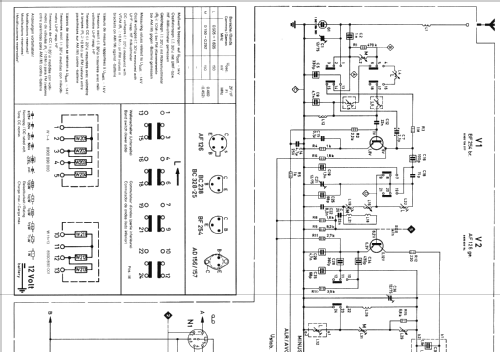

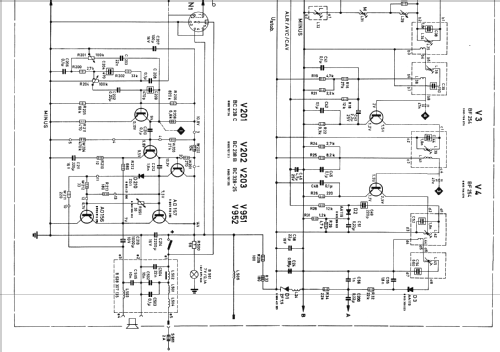

Literature/Schematics (1) -- Original-techn. papers.

Model page created by Josef Pilz. See "Data change" for further contributors.
