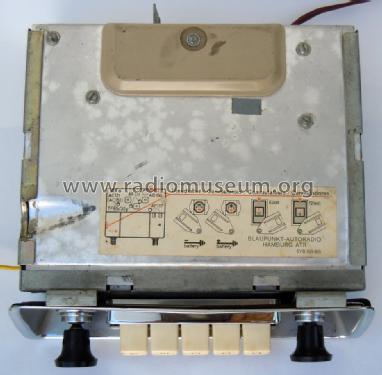

Hamburg ATR ab U 700001; Blaupunkt Ideal, (ID = 746783) Car Radio
Blaupunkt Ideal,: Hamburg ATR ab U 700001 [Car Radio] ID = 746783 800x509
Select picture or schematic to display from thumbnails on the right and click for download.
For model Hamburg ATR ab U 700001, Blaupunkt (Ideal), Berlin, später Hildesheim

Country:  Germany
Manufacturer / Brand:  Blaupunkt (Ideal), Berlin, später Hildesheim
alternative name

Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
Brand
Rotstern
Year: 1963/1964 Category: Car Radio, perhaps also + sound player/recorder
Semiconductors (the count is only for transistors) 8: AF117 AF117 AF117 AF117 AF117 AC126 AC128 AD150 E20C30 OA79 OA79 BA100
Main principle Superheterodyne (common); ZF/IF 460 or 452 kHz; 3 AF stage(s)
Tuned circuits 8 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 6; 12 Volt
Loudspeaker - This model requires external speaker(s).
Power out 2.5 W (unknown quality)
from Radiomuseum.org Model: Hamburg ATR ab U 700001 - Blaupunkt Ideal, Berlin,
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 183 x 60 x 147 mm / 7.2 x 2.4 x 5.8 inch
Notes Omnimat-Wählautomatik mit 5 Stationstasten.
Net weight (2.2 lb = 1 kg) 2.1 kg / 4 lb 10 oz (4.626 lb)
Price in first year of sale 235.00 DM
External source of data Erb
Source of data Handbuch VDRG 1963/1964
Literature/Schematics (1) -- Original-techn. papers.
