• Country
• Germany

• Manufacturer / Brand
• Blaupunkt (Ideal), Berlin, später Hildesheim

• Year
• 1963 ?

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 242649

• • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
  • Brand: Rotstern

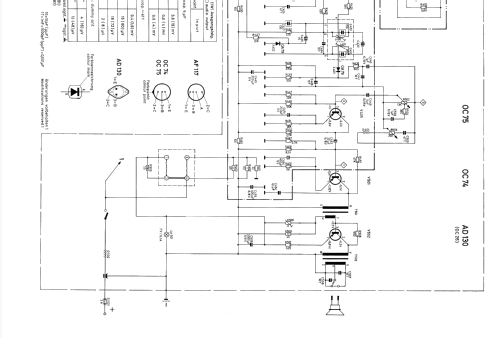

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• AF117 AF117 AF117 OC75 OC74 AD130 or. OC26

• Main principle
• Superheterodyne (common); ZF/IF 460 or 473 kHz

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 6/12 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Metal case

• from Radiomuseum.org
• Model: Hamburg ATR Alltransistor ab T 604001 - Blaupunkt Ideal, Berlin,

• Shape
• Chassis only or for «building in»

• Notes

• Möglichkeit für den Anschluss des Kurzwellenvorsatzgerätes KV 810.

• Author
• Model page created by Wolfgang Bauer. See "Data change" for further contributors.
