Hamburg ab V 230001

Hamburg ab V 230001; Blaupunkt Ideal, (ID = 313871) Car Radio

Hamburg ab V 230001; Blaupunkt Ideal, (ID = 313872) Car Radio

Hamburg ab V 230001; Blaupunkt Ideal, (ID = 313874) Car Radio

Hamburg ab V 230001; Blaupunkt Ideal, (ID = 313875) Car Radio

Hamburg ab V 230001; Blaupunkt Ideal, (ID = 314002) Car Radio

Hamburg ab V 230001; Blaupunkt Ideal, (ID = 314003) Car Radio
Hamburg ab V 230001; Blaupunkt Ideal, (ID = 2383597) Car Radio Hamburg ab V 230001; Blaupunkt Ideal, (ID = 985711) Car Radio
Use red slider bar for more.

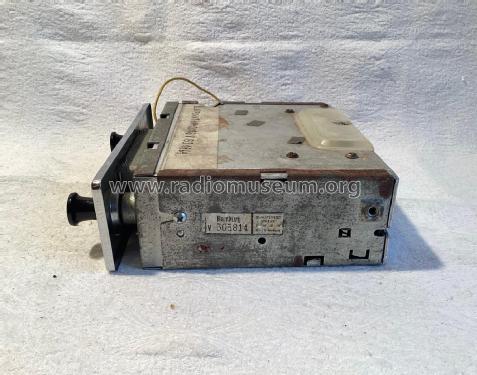

Hamburg ab V 230001; Blaupunkt Ideal, (ID = 2383597) Car Radio
Blaupunkt Ideal,: Hamburg ab V 230001 [Car Radio] ID = 2383597 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model Hamburg ab V 230001, Blaupunkt (Ideal), Berlin, später Hildesheim

Country:  Germany
Manufacturer / Brand:  Blaupunkt (Ideal), Berlin, später Hildesheim
alternative name

Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
Brand
Rotstern
Year: 1964 Category: Car Radio, perhaps also + sound player/recorder
Semiconductors (the count is only for transistors) 10: AF127 AC126 AC153 AC152 AD148 OA79 BA100
Main principle Superheterodyne (common); ZF/IF 460 kHz
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 6; 12 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: Hamburg ab V 230001 - Blaupunkt Ideal, Berlin,
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 183 x 60 x 147 mm / 7.2 x 2.4 x 5.8 inch
Notes Halbleiter teilweise mehrfach vorhanden.
Net weight (2.2 lb = 1 kg) 2.3 kg / 5 lb 1.1 oz (5.066 lb)
Source of data -- Original-techn. papers.
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Richard Winter. See "Data change" for further contributors.
