• Country
• Germany

• Manufacturer / Brand
• Blaupunkt (Ideal), Berlin, später Hildesheim

• Year
• 1967/1968

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 27058

• • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
  • Brand: Rotstern

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 30

• Semiconductors
• B40C2200 AF106 AF201 BC108 BC109 BC107 AC127 AC132 AD149 AC126 AD133 AA112 AA119 ZF15

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 7 AM circuit(s)     12 FM circuit(s)

• Wave bands
• Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220; 240 Volt

• Loudspeaker
• 4 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

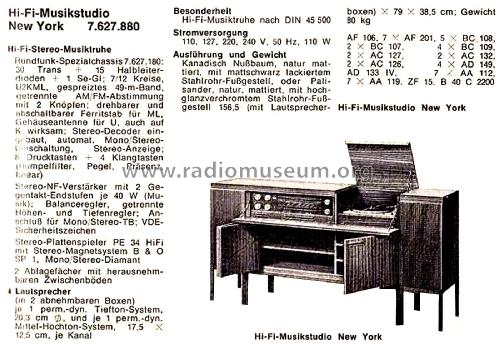

• Model: Hi-Fi-Musikstudio New York 7.627.880 - Blaupunkt Ideal, Berlin,

• Shape
• Console with Push Buttons.

• Dimensions (WHD)
• 1565 x 790 x 385 mm / 61.6 x 31.1 x 15.2 inch

• Notes

• Rundfunk-Spezialchassis = 7.627.180, Vollstereo, NF-Verstärker mit zwei Endstufen je 40 W (Musik);
  Phono-Chassis = PE 34.

  Weitere Unterlagen beim Salerno

  Jeder Halbleiter-Typ ist einmal gelistet.

• Net weight (2.2 lb = 1 kg)
• 80 kg / 176 lb 3.4 oz (176.211 lb)

• External source of data
• erb

• Source of data
• Handbuch VDRG 1967/1968
