• Country
• Germany

• Manufacturer / Brand
• Blaupunkt (Ideal), Berlin, später Hildesheim

• Year
• 1983 ?

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 225387

• • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
  • Brand: Rotstern

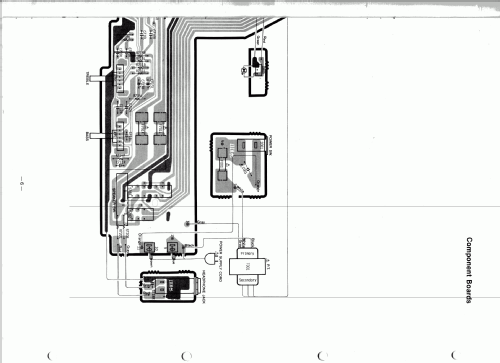

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Hi-Fi equipment

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 60 W (100 W max.)

• from Radiomuseum.org

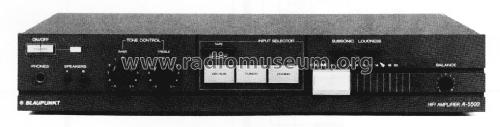

• Model: HiFi Amplifier A-5500 7 623 300 - Blaupunkt Ideal, Berlin,

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 435 x 83 x 230 mm / 17.1 x 3.3 x 9.1 inch

• Notes

• HiFi Vollverstärker. 4 Eingänge.

• Net weight (2.2 lb = 1 kg)
• 4 kg / 8 lb 13 oz (8.811 lb)

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by a member from D. See "Data change" for further contributors.
