Hildesheim ab X 1700001; Blaupunkt Ideal, (ID = 2383591) Car Radio
Blaupunkt Ideal,: Hildesheim ab X 1700001 [Car Radio] ID = 2383591 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model Hildesheim ab X 1700001, Blaupunkt (Ideal), Berlin, später Hildesheim

Country:  Germany
Manufacturer / Brand:  Blaupunkt (Ideal), Berlin, später Hildesheim
alternative name

Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
Brand
Rotstern
Year: 1966/1967 Category: Car Radio, perhaps also + sound player/recorder
Semiconductors (the count is only for transistors) 8: AF126 AF126 AF138 AF137 AC126 BC108 AC153 AC153 AA112 SIS20 Z1,5 0,7St60
Main principle Superheterodyne (common); ZF/IF 460 or 452 kHz; 3 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 6; 12 Volt
Loudspeaker - This model requires external speaker(s).
Power out 2.5 W (unknown quality)
from Radiomuseum.org Model: Hildesheim ab X 1700001 - Blaupunkt Ideal, Berlin,
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 179 x 42 x 116 mm / 7 x 1.7 x 4.6 inch
Notes

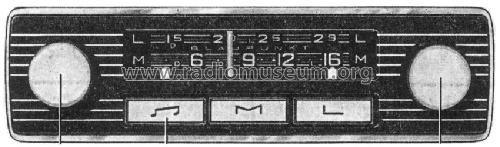

Skalenmarkierungen für Deutschlandfunk und Radio Luxemburg; tropenfest.

Net weight (2.2 lb = 1 kg) 1 kg / 2 lb 3.2 oz (2.203 lb)
Price in first year of sale 150.00 DM
External source of data erb
Source of data Handbuch VDRG 1966/1967
