Hildesheim 7.631.120 ab 100001; Blaupunkt Ideal, (ID = 763412) Car Radio

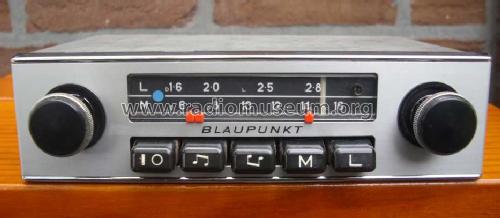

Blaupunkt Ideal,: Hildesheim 7.631.120 ab 100001 [Car Radio] ID = 763412 933x407
Select picture or schematic to display from thumbnails on the right and click for download.
For model Hildesheim 7.631.120 ab 100001, Blaupunkt (Ideal), Berlin, später Hildesheim

Country:  Germany
Manufacturer / Brand:  Blaupunkt (Ideal), Berlin, später Hildesheim
alternative name

Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
Brand
Rotstern
Year: 1971 Category: Car Radio, perhaps also + sound player/recorder
Semiconductors (the count is only for transistors) 8: BF184 AF126 BF254 BF254 BC108 BSW73 AD156 AD157 AA119 ZF7,5 ZG1
Main principle Superheterodyne (common); ZF/IF 460 or 452 kHz
Tuned circuits 8 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
Loudspeaker - This model requires external speaker(s).
Power out 4 W (unknown quality)
from Radiomuseum.org Model: Hildesheim 7.631.120 ab 100001 - Blaupunkt Ideal, Berlin,
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 179 x 43 x 115 mm / 7 x 1.7 x 4.5 inch
Net weight (2.2 lb = 1 kg) 1 kg / 2 lb 3.2 oz (2.203 lb)
Source of data Handbuch VDRG 1971/1972
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Josef Pilz. See "Data change" for further contributors.
