Interface Box 7.607.907.010
Blaupunkt (Ideal), Berlin, später Hildesheim
- Country
- Germany
- Manufacturer / Brand
- Blaupunkt (Ideal), Berlin, später Hildesheim
- Year
- 1980 ??
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 146573
-
- alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
- Brand: Rotstern
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 9
- Semiconductors
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org

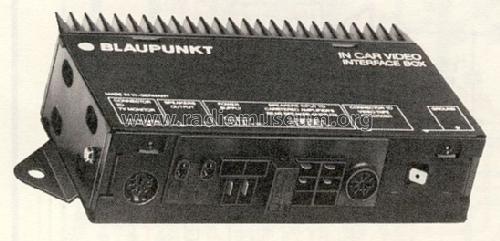

- Model: Interface Box 7.607.907.010 - Blaupunkt Ideal, Berlin,
- Notes
- 2 IC; Die Interface-Box bildet die zentrale Verkabelungs- und Stromversorgungseinheit der gesamten InCarVideo-Anlage.
- Mentioned in
- Original Blaupunkt Service Unterlagen
- Author
- Model page created by Josef Pilz. See "Data change" for further contributors.
