Köln ATR ab U 540001

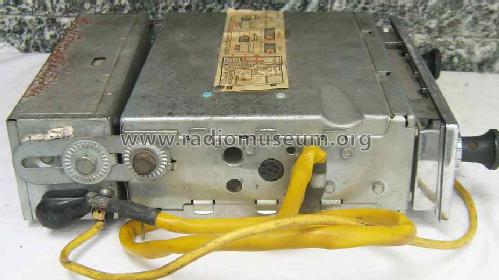

Blaupunkt Ideal,: Köln ATR ab U 540001 [Car Radio] ID = 2383793 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
|
alternative name
|
Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934) | ||||
|---|---|---|---|---|---|
Brand |
Rotstern | ||||
| Year: 1963/1964 | Category: Car Radio, perhaps also + sound player/recorder | ||||
| Semiconductors (the count is only for transistors) | 19: AF106 AF126 OC75 OC74 AD150 AC126 AC125 AD148 |
| Main principle | Superhet with RF-stage; ZF/IF 460/10700/6700 kHz |
|---|---|
| Tuned circuits | 7 AM circuit(s) 13 FM circuit(s) |
| Wave bands | Broadcast, Long Wave and FM or UHF. |
| Details | |
| Power type and voltage | Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt |
| Loudspeaker | - This model requires external speaker(s). |
| Power out | |
| from Radiomuseum.org | Model: Köln ATR ab U 540001 - Blaupunkt Ideal, Berlin, |
| Material | Metal case |
| Shape | Chassis only or for «building in» |
| Dimensions (WHD) | 190 x 60 x 225 mm / 7.5 x 2.4 x 8.9 inch |
| Notes | Die Blaupunkt Autoradios Serviceunterlagen wurden früher nach Serie archiviert. Bis 1968 (Serie Z). Dann unter den Bestellnummern ab 1969, 7 639 ... 1970 7 630 ... usw. UKW: Doppelsuper, 5 + 5 + 1 ZF-Kreise, 1. ZF 10,7 MHz, 2. ZF 6,7 MHz Transistoren teilweise mehrfach vorhanden. Zugehöriger NF-Verstärker: J2907 |
| Net weight (2.2 lb = 1 kg) | 4.8 kg / 10 lb 9.2 oz (10.573 lb) |
| Source of data | -- Original-techn. papers. |
