• Country
• Germany

• Manufacturer / Brand
• Blaupunkt (Ideal), Berlin, später Hildesheim

• Year
• 1969

• Category
• Loudspeaker, headphone or earphone

• Radiomuseum.org ID
• 195222

• • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
  • Brand: Rotstern

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Power type and voltage
• No Power needed

• Loudspeaker
• 3 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: LAB-104 7629970 - Blaupunkt Ideal, Berlin,

• Dimensions (WHD)
• 400 x 240 x 100 mm / 15.7 x 9.4 x 3.9 inch

• Notes

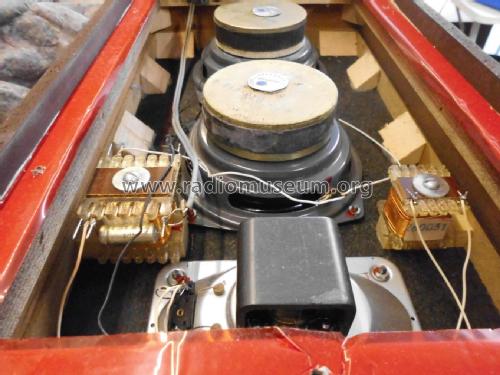

• 2 Tieftonlautsprecher 130 mm, 1 Mittel/Hochtonlautsprecher 75 x 130 mm, Übertragungsbereich: 50 - 18000 Hz, 10/15 Watt, Inhalt 5,4 Liter, Gehäusefarbe Edelholz hell matt oder palisander

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Richard Winter. See "Data change" for further contributors.
