Lautsprecher Chassis MIIG (M2G)
Blaupunkt (Ideal), Berlin, später Hildesheim
- Country
- Germany
- Manufacturer / Brand
- Blaupunkt (Ideal), Berlin, später Hildesheim
- Year
- 1933–1935
- Category
- Loudspeaker, headphone or earphone
- Radiomuseum.org ID
- 138395
-
- alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
- Brand: Rotstern
- Wave bands
- - without
- Power type and voltage
- Direct Current supply (DC) / 110 or 220 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 23 cm = 9.1 inch
- Material
- Various materials
- from Radiomuseum.org

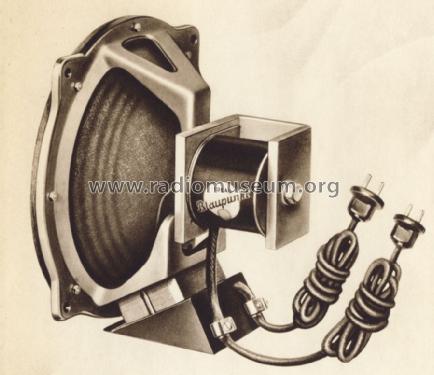

- Model: Lautsprecher Chassis MIIG - Blaupunkt Ideal, Berlin,
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 230 x 230 x 140 mm / 9.1 x 9.1 x 5.5 inch
- Notes
-
Verschiedene Ausführungen (110 V, 220 V).
- Price in first year of sale
- 26.00 RM
- Literature/Schematics (1)
- Blaupunkt Prospekt 1935
- Literature/Schematics (2)
- -- Original prospect or advert (Radio Apparate und Lautsprecher 1933)
- Author
- Model page created by Jürgen Tiedmann. See "Data change" for further contributors.
