• Country
• Germany

• Manufacturer / Brand
• Blaupunkt (Ideal), Berlin, später Hildesheim

• Year
• 1986 ??

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 155485

• • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
  • Brand: Rotstern

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 11

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 5 AM circuit(s)     7 FM circuit(s)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 20 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org
• Model: Linz M 26 7.644.543.010 [ab 1 752 001] - Blaupunkt Ideal, Berlin,

• Shape
• Chassis only or for «building in»

• Notes
• 6 IC; 2x10 Watt Musikleistung an 2 Ohm, 3xLW/1xMW/2xUKW

• Mentioned in

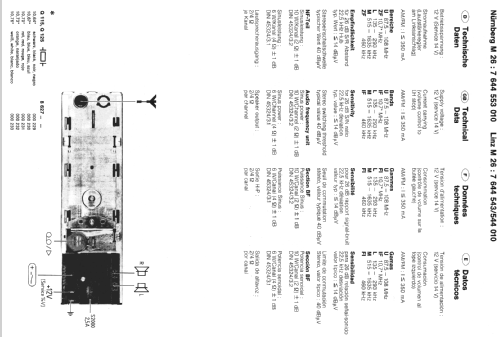

• Original Blaupunkt Service Unterlagen

• Author
• Model page created by Josef Pilz. See "Data change" for further contributors.
