• Year
  • 1990–1992
  • Category
  • Car Radio, perhaps also + sound player/recorder
  • Radiomuseum.org ID
  • 186509
    • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
    • Brand: Rotstern

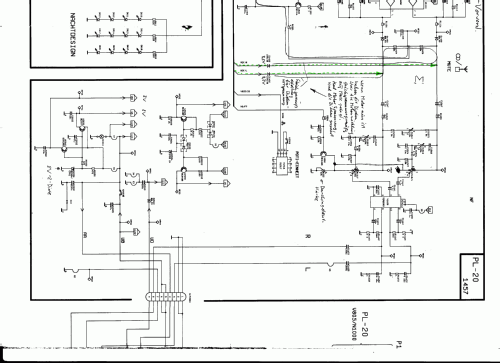

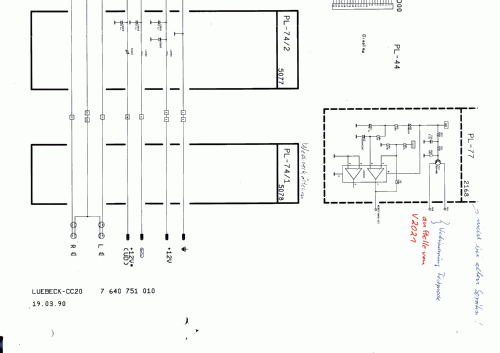

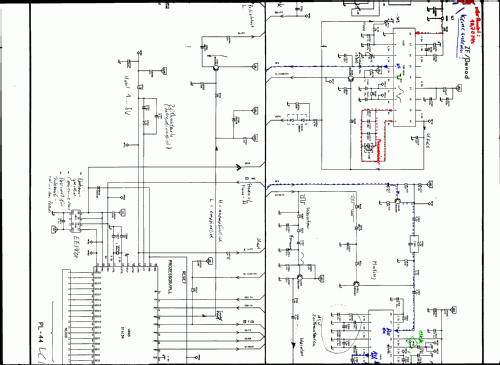

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 16
  • Semiconductors
  • Main principle
  • Superheterodyne (common); ZF/IF 10700 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 FM circuit(s)
  • Wave bands
  • FM Broadcast Band Only
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Storage Battery for all (e.g. for car radios and amateur radios) / 13,2 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 20 W (unknown quality)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Lübeck CC20 7.640.751.010 - Blaupunkt Ideal, Berlin,
  • Shape
  • Chassis only or for «building in»
  • Dimensions (WHD)
  • 180 x 50 x 150 mm / 7.1 x 2 x 5.9 inch
  • Notes
  • Autoradio mit 20 Senderspeichern, Suchlauf in 2 Empfindlichkeitsstufen, Travelstore (automatisches Abspeichern der 5 stärksten Stationen), Verkehrsfunk, bass- und höhenwirksame Klangwaage, Balanceregler, Kassettenlaufwerk Mini 4 mit schnellem Vorlauf (kein Autoreverse), ISO-Strom- und Lautsprecheranschluss. Ausgangsleistung: 2 x 10 Watt. Diebstahlschutz: 4-stelliger Code, eingestanzte Seriennummer mit Autoradiopass und optionales Quick-Out Nachrüstkit (Radio konnte mittels klappbarem Griff aus dem Einbaurahmen herausgezogen und mitgenommen werden). Auch als Exportmodell "Boston CC 20" ohne Verkehrsfunk, aber dafür mit Mittelwelle geliefert. Zu den o.g. Kreisen kommen noch 2 keramische dreipolige ZF-Filter. Außerdem beinhaltet das Gerät noch 8 IC's.
  • Net weight (2.2 lb = 1 kg)
  • 1 kg / 2 lb 3.2 oz (2.203 lb)
  • Price in first year of sale
  • 299.00 DM
  • Source of data
  • - - Manufacturers Literature
  • Author
  • Model page created by André Kleeberg. See "Data change" for further contributors.
