Marathon 7.678.330

• Country
• Germany

• Manufacturer / Brand
• Blaupunkt (Ideal), Berlin, später Hildesheim

• Year
• 1968/1969

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 116634

• • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
  • Brand: Rotstern

• Picture

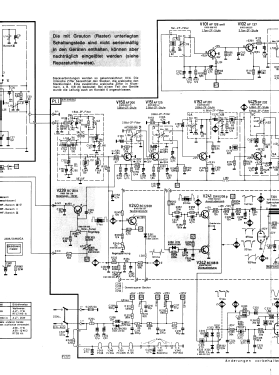

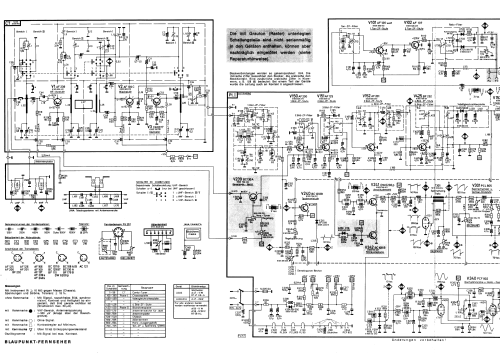

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• A59-11W or A59-12W/2

• Number of Transistors
• 14

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org
• Model: Marathon 7.678.330 - Blaupunkt Ideal, Berlin,

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 800 x 505 x 305 mm / 31.5 x 19.9 x 12 inch

• Notes
• VHF/UHF-Einblock-Drucktasten-Tuner.

• Net weight (2.2 lb = 1 kg)
• 28 kg / 61 lb 10.8 oz (61.674 lb)

• Source of data
• Handbuch VDRG 1968/1969

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
