Montana IS 32 VT 7.662.880 Ch= FM120

Blaupunkt (Ideal), Berlin, später Hildesheim

  • Year
  • 1983 ?
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 279136
    • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
    • Brand: Rotstern

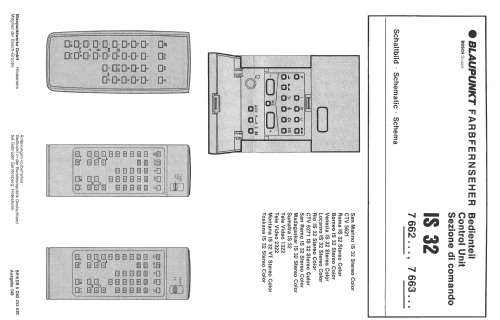

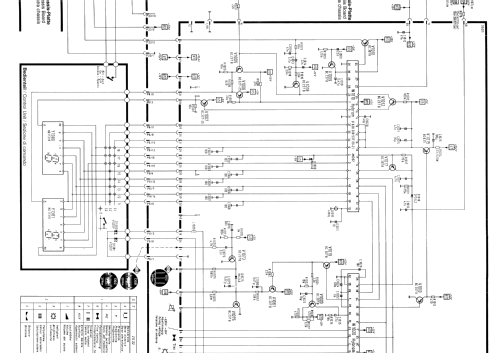

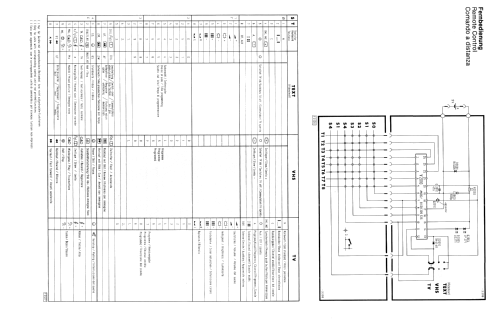

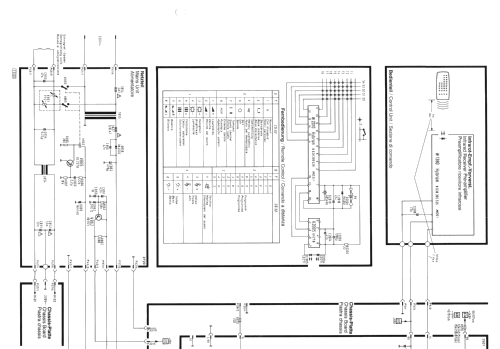

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 1
  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • VHF incl. FM and/or UHF (see notes for details)
  • Details
  • Radio Control (+Remote Wire etc)
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • 2 Loudspeakers
  • Power out
  • 20 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Montana IS 32 VT 7.662.880 Ch= FM120 - Blaupunkt Ideal, Berlin,
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 790 x 521 x 471 mm / 31.1 x 20.5 x 18.5 inch
  • Notes
  • Bildschirmdiagonale 67 cm, Allband-Tuner (Kabelfernseh-Tuner) mit 32 Programmspeicherplätzen, AFC, Nummerische Programmanzeige, Stereo Decoder, Tonausgangsleistung 2 x 10 Watt, Quasi-Parallelton, Sendesuchlauf, Secam Ost, AV-Buchse, Videotext-Decoder, Stereo-Decoder, 2 Tonnorm.

  • Mentioned in
  • -- Original prospect or advert
  • Author
  • Model page created by Karlheinz Fischer. See "Data change" for further contributors.
