Montreux RCR30 7.640.894.010

Blaupunkt (Ideal), Berlin, später Hildesheim

Data
Forum
Pictures
Collections

  • Year
  • 1990/1991
  • Category
  • Car Radio, perhaps also + sound player/recorder
  • Radiomuseum.org ID
  • 196515
    • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
    • Brand: Rotstern

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • PLL, Phase-locked loop
  • Wave bands
  • Broadcast, Long Wave and FM or UHF.
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 28 W (unknown quality)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Montreux RCR30 7.640.894.010 - Blaupunkt Ideal, Berlin,
  • Shape
  • Chassis only or for «building in»
  • Dimensions (WHD)
  • 180 x 50 x 180 mm / 7.1 x 2 x 7.1 inch
  • Notes

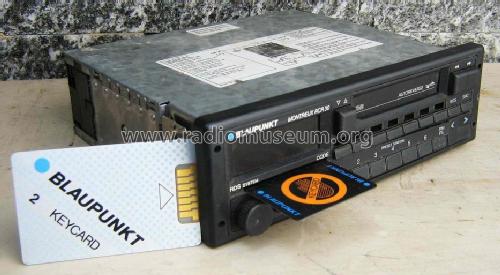

  • Montreux RCR30 7.640.894.010, vier Lautsprecherausgänge, ARI, DNR, MTL, CPS, RDS, SRC, Code mittels Card, Kassette-Recorder, Fader, Treble, Bass, Din-Buchse für weitere Geräteanschlüsse.

     4 x 7 Watt Musikleistung.

  • Net weight (2.2 lb = 1 kg)
  • 2.3 kg / 5 lb 1.1 oz (5.066 lb)
  • Source of data
  • - - Data from my own collection
  • Mentioned in
  • -- Original prospect or advert (Blaupunkt Prospekt Bilradio 1991)
  • Author
  • Model page created by Karlheinz Fischer. See "Data change" for further contributors.
