• Country
• Germany

• Manufacturer / Brand
• Blaupunkt (Ideal), Berlin, später Hildesheim

• Year
• 1994/1995

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 147680

• • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
  • Brand: Rotstern

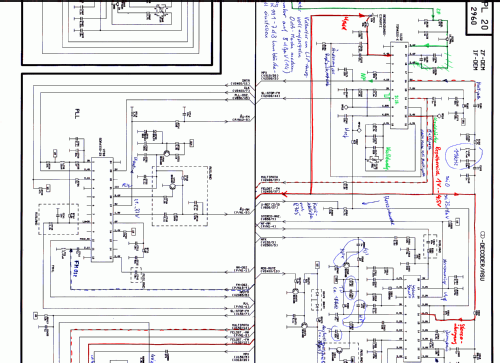

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• FM Broadcast Band Only

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 13,8 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 20 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org

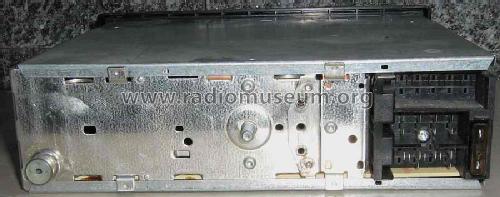

• Model: Montreux RCR44 7.643.784.010 - Blaupunkt Ideal, Berlin,

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 180 x 50 x 170 mm / 7.1 x 2 x 6.7 inch

• Notes
• Radio mit RDS; 4x6 Speicherplätze; nichtflüchtiger Speicher; Suchlauf, Travelstore, manuelle Abstimmung; Verkehrsfunk; Diebstahlschutz: Festcode, Quick Out Nachrüstmöglichkeit; Autoreverse-Kassettenteil; getrennte Höhen- und Tiefenreglung; Balance, Fader; 4x5 Watt Sinus-Ausgangsleistung; Displayfarbe einstellbar (grün / amber);

• Net weight (2.2 lb = 1 kg)
• 1.6 kg / 3 lb 8.4 oz (3.524 lb)

• Author
• Model page created by Karlheinz Fischer. See "Data change" for further contributors.
