For model Omnibus Anlage München V (5) ab X 993001, Blaupunkt (Ideal), Berlin, später Hildesheim:
Bild von Jaroslav Půlpán.

Country:  Germany
Manufacturer / Brand:  Blaupunkt (Ideal), Berlin, später Hildesheim
alternative name

Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
Brand
Rotstern
Year: 1966/1967 Category: Car Radio, perhaps also + sound player/recorder
Valves / Tubes 15:
Semiconductors (the count is only for transistors) AF106 AF121 AF126 AC150 BFY39 AC151 AC117 AD131 AA113 AA112
Main principle Super-Heterodyne (Super in general); ZF/IF 460 or 452/10700 kHz
Tuned circuits 8 AM circuit(s)     14 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 12; 24 Volt
Loudspeaker - This model requires external speaker(s).
Power out 12 W (unknown quality)
from Radiomuseum.org Model: Omnibus Anlage München V ab X 993001 - Blaupunkt Ideal, Berlin,
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 138 x 183 x 125 mm / 5.4 x 7.2 x 4.9 inch
Notes

Halbleiter teilweise mehrfach vorhanden.
Omnibus-Übertragungsanlage München V bestehend aus Empfängerteil Köln Serie X ohne NF-Stufe, Bedienungsteil und Leistungsverstärker.

Net weight (2.2 lb = 1 kg) 6.6 kg / 14 lb 8.6 oz (14.537 lb)
Price in first year of sale 880.00 DM
External source of data erb
Source of data Handbuch VDRG 1966/1967

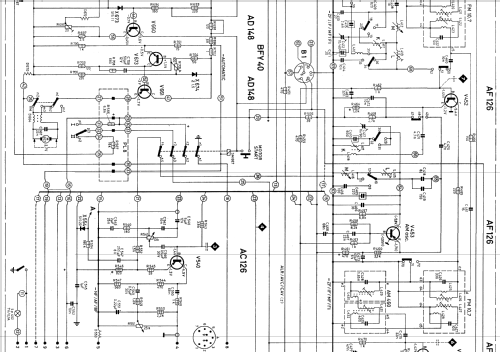

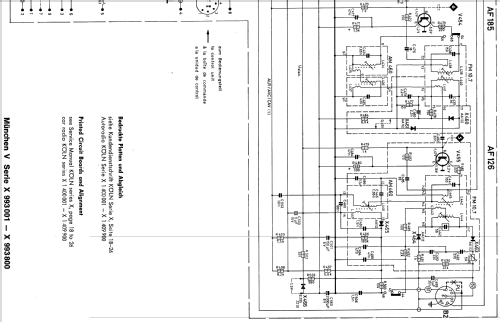

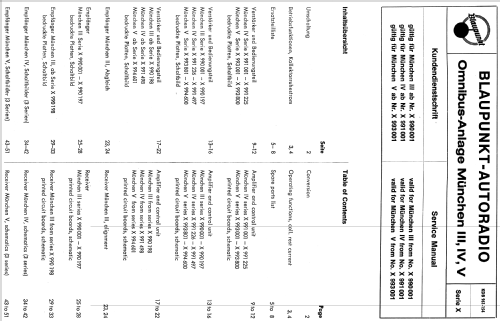

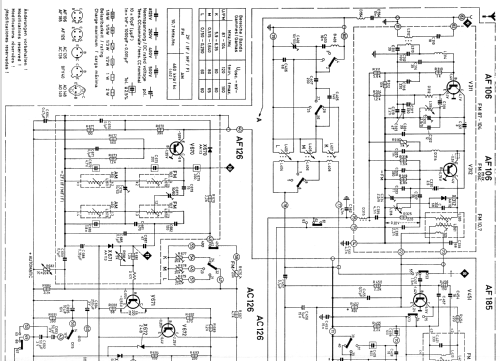

Literature/Schematics (1) -- Original-techn. papers.
