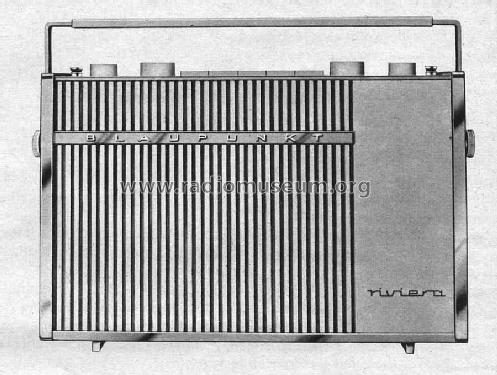

Riviera 94800; Blaupunkt Ideal, (ID = 13044) Radio Riviera 94800; Blaupunkt Ideal, (ID = 493512) Radio
Riviera 94800; Blaupunkt Ideal, (ID = 516632) Radio Riviera 94800; Blaupunkt Ideal, (ID = 522348) Radio
Riviera 94800; Blaupunkt Ideal, (ID = 522349) Radio Riviera 94800; Blaupunkt Ideal, (ID = 522350) Radio
Riviera 94800; Blaupunkt Ideal, (ID = 522351) Radio Riviera 94800; Blaupunkt Ideal, (ID = 522352) Radio
Use red slider bar for more.
Riviera 94800; Blaupunkt Ideal, (ID = 367226) Radio
Blaupunkt Ideal,: Riviera 94800 [Radio] ID = 367226 740x555
Select picture or schematic to display from thumbnails on the right and click for download.
For model Riviera 94800 ab V730.001, Blaupunkt (Ideal), Berlin, später Hildesheim

Country:  Germany
Manufacturer / Brand:  Blaupunkt (Ideal), Berlin, später Hildesheim
alternative name

Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
Brand
Rotstern
Year: 1964/1965 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 11: AF106 AF135 AF136 AF138 AF137 OC45 AC122 AC122 AC122 AC117 AC117
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz; 3 AF stage(s)
Tuned circuits 7 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details

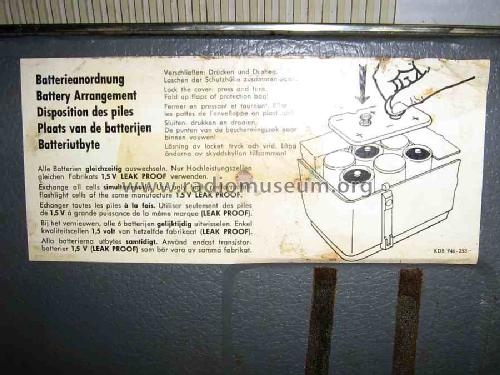

Power type and voltage Dry Batteries / 6 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Riviera 94800 [ab V730.001] - Blaupunkt Ideal, Berlin,
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 293 x 187 x 89 mm / 11.5 x 7.4 x 3.5 inch
Notes UKW-Bereich bis 104 MHz, AFC. Zwei Teleskopantennen, 5 Pol.-AUX-Buchse nach DIN, Zusatzlautsprecherbuchse.
Net weight (2.2 lb = 1 kg) 4 kg / 8 lb 13 oz (8.811 lb)
Price in first year of sale 425.00 DM
Source of data Handbuch VDRG 1964/1965 / Radiokatalog Band 1, Ernst Erb
Literature/Schematics (1) -- Original-techn. papers.
