• Year
  • 1966/1967
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 112426
    • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
    • Brand: Rotstern

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 8
  • Number of Transistors
  • 12
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • 2 Loudspeakers
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Sevilla 7.676.450 - Blaupunkt Ideal, Berlin,
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 725 x 515 x 280 mm / 28.5 x 20.3 x 11 inch
  • Notes
  • VHF/UHF

    Anschluss für Kabelfernbedienung FG 257 (Lautstärke und Helligkeit)..

  • Net weight (2.2 lb = 1 kg)
  • 30 kg / 66 lb 1.3 oz (66.079 lb)
  • Literature/Schematics (1)

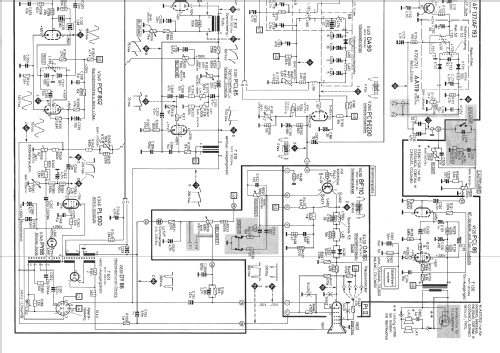

  • -- Schematic
  • Author
  • Model page created by Bernd P. Kieck. See "Data change" for further contributors.
