Smart 7.650.200

Smart 7.650.200; Blaupunkt Ideal, (ID = 143373) Radio

Smart 7.650.200; Blaupunkt Ideal, (ID = 1980817) Radio

Smart 7.650.200; Blaupunkt Ideal, (ID = 1980819) Radio
Smart 7.650.200; Blaupunkt Ideal, (ID = 2124135) Radio Smart 7.650.200; Blaupunkt Ideal, (ID = 2124136) Radio
Smart 7.650.200; Blaupunkt Ideal, (ID = 73642) Radio Smart 7.650.200; Blaupunkt Ideal, (ID = 1126390) Radio
Smart 7.650.200; Blaupunkt Ideal, (ID = 1126926) Radio Smart 7.650.200; Blaupunkt Ideal, (ID = 519527) Radio
Smart 7.650.200; Blaupunkt Ideal, (ID = 1126382) Radio Smart 7.650.200; Blaupunkt Ideal, (ID = 1126384) Radio
Smart 7.650.200; Blaupunkt Ideal, (ID = 1126385) Radio Smart 7.650.200; Blaupunkt Ideal, (ID = 1126386) Radio
Use red slider bar for more.
Smart 7.650.200; Blaupunkt Ideal, (ID = 2124135) Radio

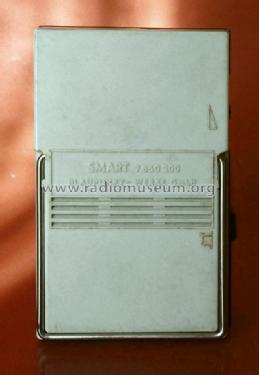

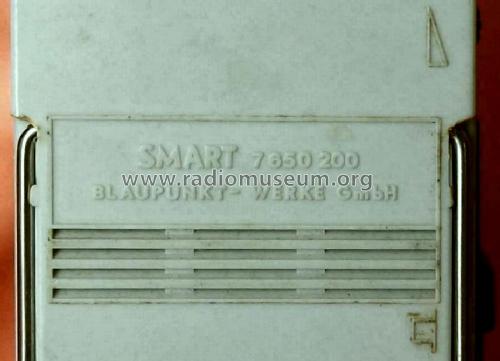

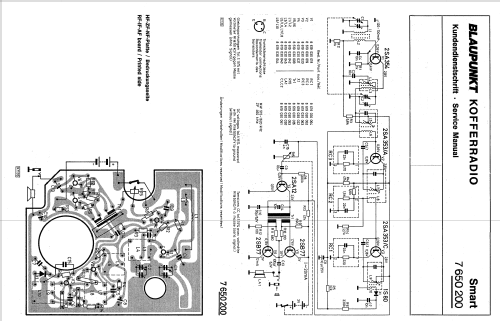

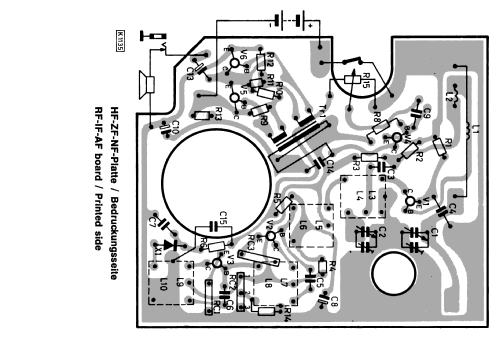

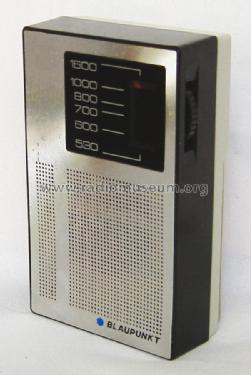

Blaupunkt Ideal,: Smart 7.650.200 [Radio] ID = 2124135 535x793
Select picture or schematic to display from thumbnails on the right and click for download.
For model Smart 7.650.200, Blaupunkt (Ideal), Berlin, später Hildesheim

Country:  Germany
Manufacturer / Brand:  Blaupunkt (Ideal), Berlin, später Hildesheim
alternative name

Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
Brand
Rotstern
Year: 1970/1971 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6: 2SA354 2SA353 2SA353 2SA12 2SB77 2SB77 1S80
Main principle Superheterodyne (common); ZF/IF 460 kHz
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 2 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 cm = 2 inch
Power out 0.1 W (unknown quality)
from Radiomuseum.org Model: Smart 7.650.200 - Blaupunkt Ideal, Berlin,
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 66 x 108 x 32 mm / 2.6 x 4.3 x 1.3 inch
Notes

Gegentakt-Endstufe, Ferritantenne, Anschluß für Ohrhörer, Gehäusefarbe in schwarz/pastellgrau.

Net weight (2.2 lb = 1 kg) 0.2 kg / 0 lb 7 oz (0.441 lb)
Source of data Handbuch VDRG 1970/1971 / Radiokatalog Band 1, Ernst Erb


All listed radios etc. from Blaupunkt (Ideal), Berlin, später Hildesheim
Here you find 3226 models, 2910 with images and 2228 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
