Standard-Super GW

Standard-Super GW; Blaupunkt Ideal, (ID = 101148) Radio Standard-Super GW; Blaupunkt Ideal, (ID = 101149) Radio
Standard-Super GW; Blaupunkt Ideal, (ID = 101150) Radio Standard-Super GW; Blaupunkt Ideal, (ID = 330246) Radio
Standard-Super GW; Blaupunkt Ideal, (ID = 330512) Radio Standard-Super GW; Blaupunkt Ideal, (ID = 693616) Radio
Standard-Super GW; Blaupunkt Ideal, (ID = 823985) Radio Standard-Super GW; Blaupunkt Ideal, (ID = 1516052) Radio
Standard-Super GW; Blaupunkt Ideal, (ID = 1516053) Radio Standard-Super GW; Blaupunkt Ideal, (ID = 1532182) Radio
Use red slider bar for more.
Standard-Super GW; Blaupunkt Ideal, (ID = 101148) Radio
Blaupunkt Ideal,: Standard-Super GW [Radio] ID = 101148 847x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Standard-Super GW, Blaupunkt (Ideal), Berlin, später Hildesheim

Country:  Germany
Manufacturer / Brand:  Blaupunkt (Ideal), Berlin, später Hildesheim
alternative name

Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
Brand
Rotstern
Year: 1948/1949 Category: Broadcast Receiver - or past WW2 Tuner

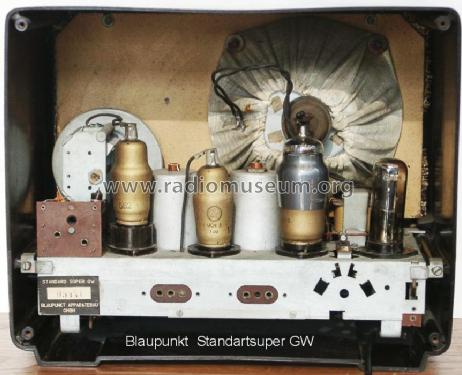

Valves / Tubes 4: UCH5 UCH5 UBL3 UY3 U2410P
Main principle Super-Heterodyne (Super in general); ZF/IF 468 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage AC/DC-set / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Standard-Super GW - Blaupunkt Ideal, Berlin,

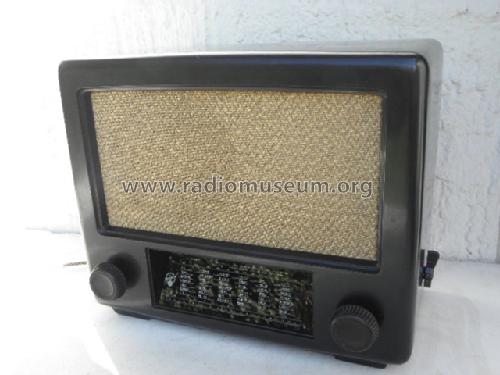

Material Bakelite case
Shape Tablemodel, low profile (big size).
Collectors' prices

Model page created by Wolfgang Bauer. See "Data change" for further contributors.
