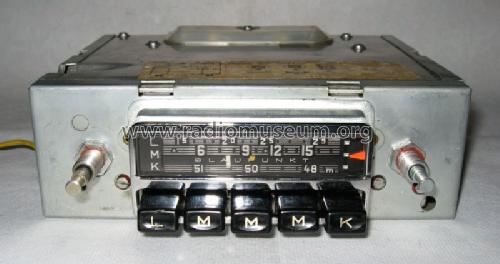

Stuttgart ab V 100001; Blaupunkt Ideal, (ID = 2384106) Car Radio Stuttgart ab V 100001; Blaupunkt Ideal, (ID = 295514) Car Radio
Stuttgart ab V 100001; Blaupunkt Ideal, (ID = 295515) Car Radio Stuttgart ab V 100001; Blaupunkt Ideal, (ID = 295516) Car Radio
Stuttgart ab V 100001; Blaupunkt Ideal, (ID = 295517) Car Radio
Use red slider bar for more.

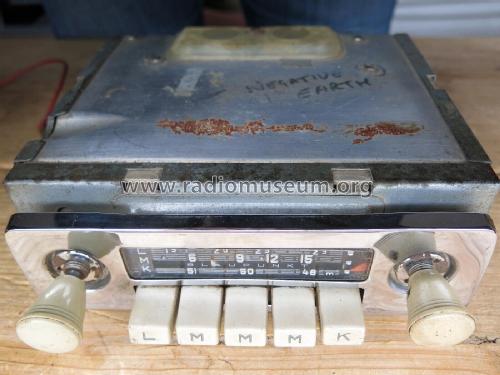

Stuttgart ab V 100001; Blaupunkt Ideal, (ID = 2384106) Car Radio
Blaupunkt Ideal,: Stuttgart ab V 100001 [Car Radio] ID = 2384106 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model Stuttgart ab V 100001, Blaupunkt (Ideal), Berlin, später Hildesheim

Country:  Germany
Manufacturer / Brand:  Blaupunkt (Ideal), Berlin, später Hildesheim
alternative name

Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
Brand
Rotstern
Year: 1964/1965 Category: Car Radio, perhaps also + sound player/recorder
Semiconductors (the count is only for transistors) 10: AF126 AF116 AF117 AC151 AC121 AD150 OA79 BA100
Main principle Superheterodyne (common); ZF/IF 460 or 452 kHz
Tuned circuits 8 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 6; 12 Volt
Loudspeaker - This model requires external speaker(s).
Power out 5 W (unknown quality)
from Radiomuseum.org Model: Stuttgart ab V 100001 - Blaupunkt Ideal, Berlin,
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 183 x 60 x 146 mm / 7.2 x 2.4 x 5.7 inch
Notes Halbleiter teilweise mehrfach vorhanden.
Ausgangsleistung bei 12 V = 7 W; Omnimat-Wählautomatik.
Net weight (2.2 lb = 1 kg) 2.4 kg / 5 lb 4.6 oz (5.286 lb)
Price in first year of sale 265.00 DM
External source of data Erb
Source of data Handbuch VDRG 1964/1965
Literature/Schematics (1) -- Original-techn. papers.
