Stuttgart TR ab D 300001; Blaupunkt Ideal, (ID = 2411517) Car Radio
Blaupunkt Ideal,: Stuttgart TR ab D 300001 [Car Radio] ID = 2411517 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model Stuttgart TR ab D 300001, Blaupunkt (Ideal), Berlin, später Hildesheim

Country:  Germany
Manufacturer / Brand:  Blaupunkt (Ideal), Berlin, später Hildesheim
alternative name

Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
Brand
Rotstern
Year: 1960/1961 Category: Car Radio, perhaps also + sound player/recorder
Valves / Tubes 4: EF89 ECH81 EBF89 ECF83
Semiconductors (the count is only for transistors) 3: TF80/30 TF80/30 TF78/30 E125C15
Main principle Superheterodyne (common); ZF/IF 460/473 kHz
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 6 ; 12 Volt
Loudspeaker - This model requires external speaker(s).
Power out 4 W (unknown quality)
from Radiomuseum.org Model: Stuttgart TR ab D 300001 - Blaupunkt Ideal, Berlin,
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 183 x 82 x 168 mm / 7.2 x 3.2 x 6.6 inch
Net weight (2.2 lb = 1 kg) 2.7 kg / 5 lb 15.2 oz (5.947 lb)
Price in first year of sale 269.00 DM
Mentioned in - - Manufacturers Literature (Blaupunkt Illustrierte 1959/60)

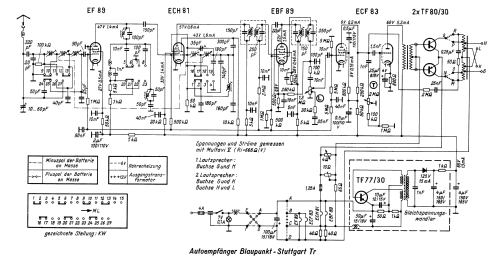

Literature/Schematics (1) -- Original-techn. papers.

Model page created by Richard Winter. See "Data change" for further contributors.
