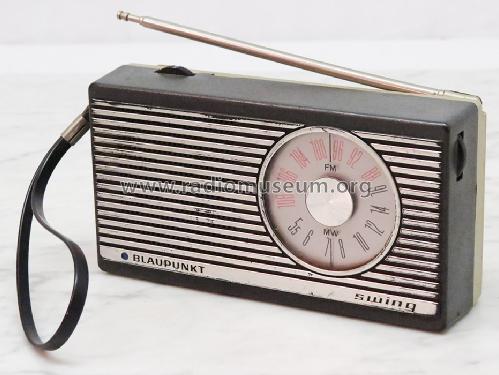

Blaupunkt Ideal,: Swing 7.658.100 [Radio] ID = 1707367 933x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Swing 7.658.100, Blaupunkt (Ideal), Berlin, später Hildesheim

Country:  Germany
Manufacturer / Brand:  Blaupunkt (Ideal), Berlin, später Hildesheim
alternative name

Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
Brand
Rotstern
Year: 1968/1969 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9: AF106 AF256 AF121 AF121 AF126 BC148 AC122 AC131 AC186
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 5 AM circuit(s)     8 FM circuit(s)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Dry Batteries / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7 cm = 2.8 inch
Power out 0.2 W (unknown quality)
from Radiomuseum.org Model: Swing 7.658.100 - Blaupunkt Ideal, Berlin,
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 160 x 86 x 41 mm / 6.3 x 3.4 x 1.6 inch
Net weight (2.2 lb = 1 kg) 0.4 kg / 0 lb 14.1 oz (0.881 lb)
Source of data Handbuch VDRG 1968/1969 / Radiokatalog Band 1, Ernst Erb
Literature/Schematics (1) -- Original-techn. papers.
