Twen 68 (Japan 704)

Twen 68 ; Blaupunkt Ideal, (ID = 1655333) R-Player Twen 68 ; Blaupunkt Ideal, (ID = 1655334) R-Player
Twen 68 ; Blaupunkt Ideal, (ID = 1655335) R-Player Twen 68 ; Blaupunkt Ideal, (ID = 1655336) R-Player
Twen 68 ; Blaupunkt Ideal, (ID = 1655337) R-Player Twen 68 ; Blaupunkt Ideal, (ID = 1655339) R-Player
Twen 68 ; Blaupunkt Ideal, (ID = 328114) R-Player Twen 68 ; Blaupunkt Ideal, (ID = 1723820) R-Player
Twen 68 ; Blaupunkt Ideal, (ID = 2100438) R-Player Twen 68 ; Blaupunkt Ideal, (ID = 2100439) R-Player
Use red slider bar for more.
Twen 68 ; Blaupunkt Ideal, (ID = 1655333) R-Player
Blaupunkt Ideal,: Twen 68 [R-Player] ID = 1655333 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model Twen 68 (Japan 704), Blaupunkt (Ideal), Berlin, später Hildesheim

Country:  Germany
Manufacturer / Brand:  Blaupunkt (Ideal), Berlin, später Hildesheim
alternative name

Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
Brand
Rotstern
Year: 1969/1970 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) 8: 2SB303 2SB186 2SB186 2SB186 2SB22 2SB22 2SC536 2SC536 1S188
Main principle Audio-Amplification
Wave bands - without
Details Cassette-Recorder or -Player

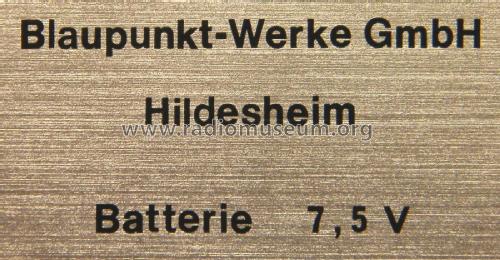

Power type and voltage Dry Batteries / 5 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch
Power out 0.5 W (unknown quality)
from Radiomuseum.org Model: Twen 68 - Blaupunkt Ideal, Berlin,
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 125 x 63 x 223 mm / 4.9 x 2.5 x 8.8 inch
Notes

Netzbetrieb mit zusätzlichem Netzteil möglich.

See also: Sanyo M-88 and M-88W.

Made in Japan 704 (Sanyo)

Net weight (2.2 lb = 1 kg) 1.8 kg / 3 lb 15.4 oz (3.965 lb)
External source of data erb
Source of data Handbuch VDRG 1969/1970
