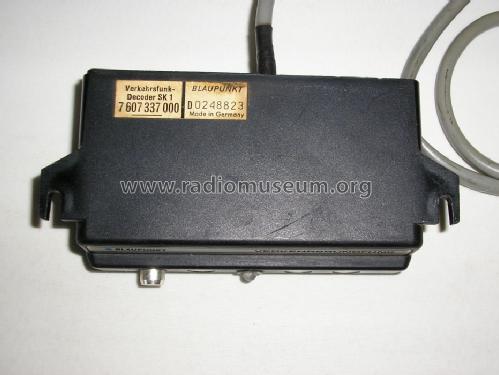

Verkehrsfunk-Decoder SK1 7.607.337.000

Blaupunkt (Ideal), Berlin, später Hildesheim

  • Year
  • 1972
  • Category
  • Miscellaneous (Other, Various) - see notes
  • Radiomuseum.org ID
  • 211753
    • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
    • Brand: Rotstern

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 7
  • Wave bands
  • - without
  • Power type and voltage
  • Powered by external power supply or a main unit. / 12 Volt
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Verkehrsfunk-Decoder SK1 7.607.337.000 - Blaupunkt Ideal, Berlin,
  • Shape
  • Miscellaneous shapes - described under notes.
  • Dimensions (WHD)
  • 110 x 35 x 70 mm / 4.3 x 1.4 x 2.8 inch
  • Notes
  • Der Verkehrsrundfunk-Decoder SK1 ist anschliessbar an alle Blaupunkt FM-Mono-Auto-Empfänger für 12V, Minuspol an Masse, und einer nach DIN 45322 beschalteten Tonbandbuchse.

    Automatische Anzeige von Verkehrsrundfunksendern (Senderkennung). Bei gedrückter Taste werden ausser den Verkehrsfunksendern alle Sender stummgeschaltet.

    Ausführung: Kunststoff-Spritzgehäuse (zur Unterbau-Montage mit Montagewinkel).

    Die Diode 1N4148 ist 5x vorhanden.

  • Source of data
  • -- Schematic
