Video Cassette Recorder RTX-100E 7618020

• Country
• Germany

• Manufacturer / Brand
• Blaupunkt (Ideal), Berlin, später Hildesheim

• Year
• 1979/1980

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 164048

• • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
  • Brand: Rotstern

• Picture

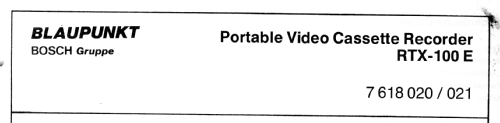

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Wave bands
• - without

• Details
• Video-Taperecorder/-Player

• Power type and voltage
• Other, details in remarks or not known. / 12 Volt

• Loudspeaker
• - For headphones or amp.

• from Radiomuseum.org
• Model: Video Cassette Recorder RTX-100E 7618020 - Blaupunkt Ideal, Berlin,

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 325 x 137 x 350 mm / 12.8 x 5.4 x 13.8 inch

• Notes
• Blaupunkt RTX-100E AC/DC/Car Battery Portable Video Cassette Recorder, Typ: 76 18020;
  System VHS PAL, direct drive, quartz locked, toploader, mech. tape counter, mic.-, rem. and earphones jack, terminals for DIN-AV, camera and ext. 12 V power supply, batt. meter, built-in RF modulator, 9.5 - 15 W power consumption, made in Japan, for use with Color Camera TVC-100.
  Netzgerät "RTX-100 P" im Lieferumfang des RTX-100E.

• Net weight (2.2 lb = 1 kg)
• 8.9 kg / 19 lb 9.7 oz (19.604 lb)

• Mentioned in
• - - Manufacturers Literature ((D) Blaupunkt Programm 1979/1980)

• Author
• Model page created by a member from A. See "Data change" for further contributors.
