Portable Video Cassette Recorder RTX-200 / 7 618 022

• Country
• Germany

• Manufacturer / Brand
• Blaupunkt (Ideal), Berlin, später Hildesheim

• Year
• 1981/1982

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 141821

• • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
  • Brand: Rotstern

• Picture

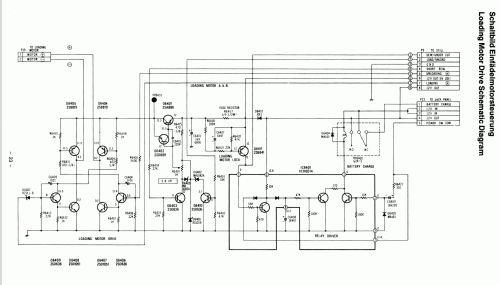

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Video-Taperecorder/-Player; Radio Control (+Remote Wire etc)

• Power type and voltage
• Storage and/or dry batteries / 12 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Portable Video Cassette Recorder RTX-200 / 7 618 022 - Blaupunkt Ideal, Berlin,

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 299 x 114 x 249 mm / 11.8 x 4.5 x 9.8 inch

• Notes

• Blaupunkt RTX-200 Portable Video Cassette Recorder;
  System VHS PAL, direct drive, quartz locked, toploader, mech. tape counter with memory, mic.-, rem. and phone jack, terminals for DIN-AV, camera and ext. 12 V power supply, batt. meter, built-in RF modulator.

  Stationäre Spannungsversorgung mit Netzanschluß über Power Adaptor PX-200 oder über Video Tuner TTP-200.

• Net weight (2.2 lb = 1 kg)
• 6 kg / 13 lb 3.5 oz (13.216 lb)

• Price in first year of sale
• 23,458.00 ATS

• Source of data
• -- Original prospect or advert

• Author
• Model page created by a member from A. See "Data change" for further contributors.
