• Country
• Germany

• Manufacturer / Brand
• Blaupunkt (Ideal), Berlin, später Hildesheim

• Year
• 1985 ??

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 146555

• • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
  • Brand: Rotstern

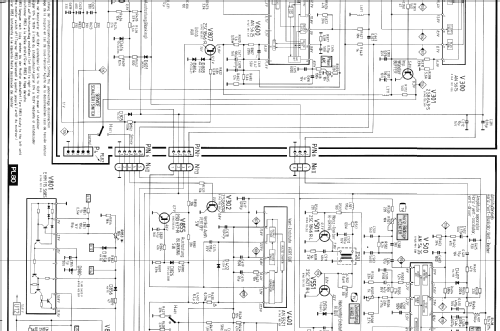

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• A18JHC30X

• Number of Transistors
• 25

• Semiconductors

• Wave bands
• - without

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

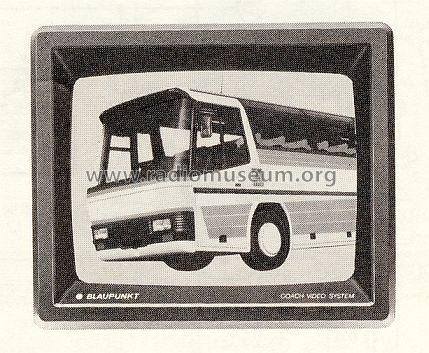

• Model: Video System 8" Monitor - Blaupunkt Ideal, Berlin,

• Shape
• Chassis only or for «building in»

• Notes
• 5 IC;

• Mentioned in
• Original Blaupunkt Service Unterlagen

• Author
• Model page created by Josef Pilz. See "Data change" for further contributors.
