Wiesbaden (S) Automatic 7.638.730 ab A 2384401

Wiesbaden Automatic 7.638.730 ab A 2384401; Blaupunkt Ideal, (ID = 961358) Car Radio

Wiesbaden Automatic 7.638.730 ab A 2384401; Blaupunkt Ideal, (ID = 961359) Car Radio

Wiesbaden Automatic 7.638.730 ab A 2384401; Blaupunkt Ideal, (ID = 961360) Car Radio

Wiesbaden Automatic 7.638.730 ab A 2384401; Blaupunkt Ideal, (ID = 961361) Car Radio

Wiesbaden Automatic 7.638.730 ab A 2384401; Blaupunkt Ideal, (ID = 961362) Car Radio

Wiesbaden Automatic 7.638.730 ab A 2384401; Blaupunkt Ideal, (ID = 961629) Car Radio

Wiesbaden Automatic 7.638.730 ab A 2384401; Blaupunkt Ideal, (ID = 2111261) Car Radio
Wiesbaden Automatic 7.638.730 ab A 2384401; Blaupunkt Ideal, (ID = 2389340) Car Radio Wiesbaden Automatic 7.638.730 ab A 2384401; Blaupunkt Ideal, (ID = 967885) Car Radio

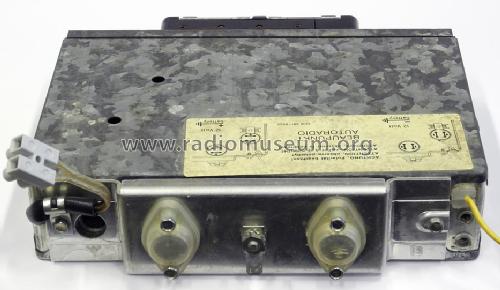

Wiesbaden Automatic 7.638.730 ab A 2384401; Blaupunkt Ideal, (ID = 967891) Car Radio Wiesbaden Automatic 7.638.730 ab A 2384401; Blaupunkt Ideal, (ID = 967903) Car Radio
Wiesbaden Automatic 7.638.730 ab A 2384401; Blaupunkt Ideal, (ID = 967904) Car Radio Wiesbaden Automatic 7.638.730 ab A 2384401; Blaupunkt Ideal, (ID = 967909) Car Radio
Wiesbaden Automatic 7.638.730 ab A 2384401; Blaupunkt Ideal, (ID = 967910) Car Radio Wiesbaden Automatic 7.638.730 ab A 2384401; Blaupunkt Ideal, (ID = 967911) Car Radio
Wiesbaden Automatic 7.638.730 ab A 2384401; Blaupunkt Ideal, (ID = 967912) Car Radio Wiesbaden Automatic 7.638.730 ab A 2384401; Blaupunkt Ideal, (ID = 967913) Car Radio
Use red slider bar for more.

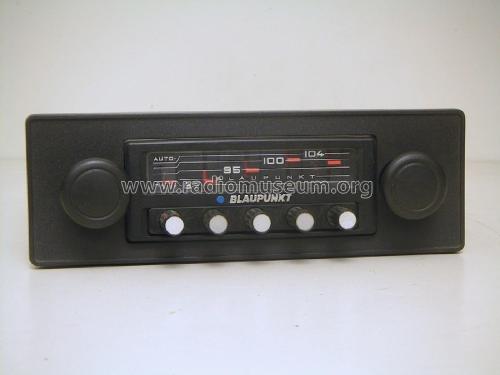

Wiesbaden Automatic 7.638.730 ab A 2384401; Blaupunkt Ideal, (ID = 2389340) Car Radio
Blaupunkt Ideal,: Wiesbaden Automatic 7.638.730 ab A 2384401 [Car Radio] ID = 2389340 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model Wiesbaden (S) Automatic 7.638.730 ab A 2384401, Blaupunkt (Ideal), Berlin, später Hildesheim

Country:  Germany
Manufacturer / Brand:  Blaupunkt (Ideal), Berlin, später Hildesheim
alternative name

Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
Brand
Rotstern
Year: 1969 ? Category: Car Radio, perhaps also + sound player/recorder
Semiconductors (the count is only for transistors) 21: BF185 BF255 BF184 BF185 BF184 BC108 BC108 AC125 AD161 AD162 BC108 BC177 BC107 BC178 BC108 BC108 BC107 BC172 BC107 BC108 BC133 BB103 1N4148 AA112 BA170 AA119
Main principle Superhet with RF-stage; ZF/IF 10700 kHz
Tuned circuits 11 FM circuit(s)
Wave bands FM Broadcast Band Only
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: Wiesbaden Automatic 7.638.730 ab A 2384401 - Blaupunkt Ideal, Berlin,
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 179 x 43 x 145 mm / 7 x 1.7 x 5.7 inch
Notes Blaupunkt Wiesbaden Automatic ist ein Autoradio mit
Diodenabstimmung und elektronischem Sendersuchlauf.
Schaltbare Suchempfindlichkeit. 4 Feststations-Tasten.
Net weight (2.2 lb = 1 kg) 0.910 kg / 2 lb 0.1 oz (2.004 lb)
Literature/Schematics (1) -- Original-techn. papers.
Literature/Schematics (2) Funkschau (19/1968, S. 585ff.)

Model page created by Bernhard Nagel. See "Data change" for further contributors.
