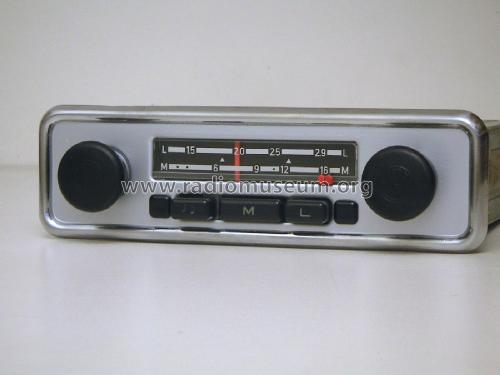

Wolfsburg 7 637 060 ab Y 1100001; Blaupunkt Ideal, (ID = 2384813) Car Radio
Blaupunkt Ideal,: Wolfsburg 7 637 060 ab Y 1100001 [Car Radio] ID = 2384813 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model Wolfsburg 7 637 060 ab Y 1100001, Blaupunkt (Ideal), Berlin, später Hildesheim

Country:  Germany
Manufacturer / Brand:  Blaupunkt (Ideal), Berlin, später Hildesheim
alternative name

Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
Brand
Rotstern
Year: 1967 Category: Car Radio, perhaps also + sound player/recorder
Semiconductors (the count is only for transistors) 8: AF126 AF126 AF121 AF121 AC126 BC108 AD148 AD148 AA112 Z1,5 0,7St60
Main principle Superheterodyne (common); ZF/IF 460 or 452 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 6; 12 Volt
Loudspeaker - This model requires external speaker(s).
Power out 4 W (unknown quality)
from Radiomuseum.org Model: Wolfsburg 7 637 060 ab Y 1100001 - Blaupunkt Ideal, Berlin,
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 180 x 42 x 115 mm / 7.1 x 1.7 x 4.5 inch
Net weight (2.2 lb = 1 kg) 2 kg / 4 lb 6.5 oz (4.405 lb)

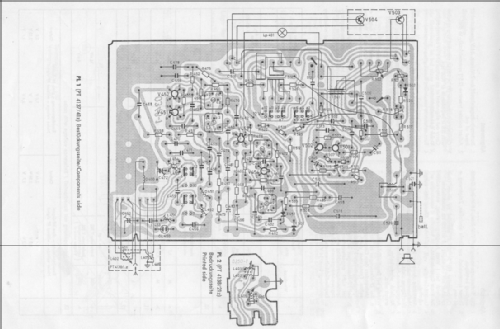

Literature/Schematics (1) -- Original-techn. papers.

Model page created by Antonius Voits. See "Data change" for further contributors.
