Wolfsburg III 7.638.061

Wolfsburg III 7.638.061; Blaupunkt Ideal, (ID = 2564248) Car Radio

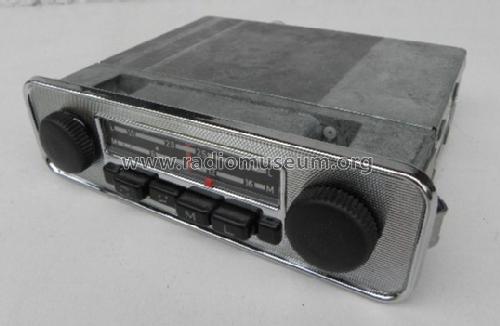

Wolfsburg III 7.638.061; Blaupunkt Ideal, (ID = 2384818) Car Radio Wolfsburg III 7.638.061; Blaupunkt Ideal, (ID = 846762) Car Radio

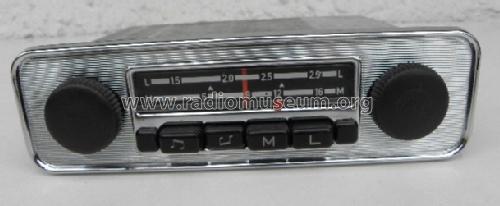

Wolfsburg III 7.638.061; Blaupunkt Ideal, (ID = 846763) Car Radio Wolfsburg III 7.638.061; Blaupunkt Ideal, (ID = 846764) Car Radio
Wolfsburg III 7.638.061; Blaupunkt Ideal, (ID = 2564338) Car Radio Wolfsburg III 7.638.061; Blaupunkt Ideal, (ID = 2564339) Car Radio
Use red slider bar for more.
Wolfsburg III 7.638.061; Blaupunkt Ideal, (ID = 2384818) Car Radio
Blaupunkt Ideal,: Wolfsburg III 7.638.061 [Car Radio] ID = 2384818 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model Wolfsburg III 7.638.061, Blaupunkt (Ideal), Berlin, später Hildesheim

Country:  Germany
Manufacturer / Brand:  Blaupunkt (Ideal), Berlin, später Hildesheim
alternative name

Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
Brand
Rotstern
Year: 1968 ? Category: Car Radio, perhaps also + sound player/recorder
Semiconductors (the count is only for transistors) 8: BF184 BF184 BC108 BC108 BC108 AC126 or. BC178 AD161 AD162 Z1,5 ZG1 AA119 AA119
Main principle Superhet with RF-stage; ZF/IF 460 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Storage and/or dry batteries / 12 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: Wolfsburg III 7.638.061 - Blaupunkt Ideal, Berlin,
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 179 x 43 x 115 mm / 7 x 1.7 x 4.5 inch
Net weight (2.2 lb = 1 kg) 1 kg / 2 lb 3.2 oz (2.203 lb)
Literature/Schematics (1) -- Schematic

Model page created by Werner Wussow. See "Data change" for further contributors.
