• Country
• United States of America (USA)

• Manufacturer / Brand
• Bogen (-Presto), David Co., Inc.; New York, NY / Paramus, NJ

• Year
• 1955 ?

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 98034

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 12AX7 12AX7 12AX7 6V6GT 6V6GT 5Y3GT

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Metal case

• from Radiomuseum.org

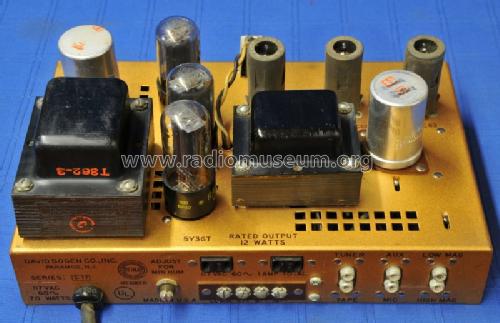

• Model: DB110 - Bogen -Presto, David Co., Inc.

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 11 x 7.25 x 5.25 inch / 279 x 184 x 133 mm

• Notes

• David Bogen model DB110 is an AC operated 5 channel audio amplifier.



• Price in first year of sale
• 60.00 $

• Mentioned in
• Allied Radio Catalog Nº 150, 1956

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Date 12-55, Set 300, Folder 3)

• Author
• Model page created by Vitor Oliveira. See "Data change" for further contributors.
