• Country
• United States of America (USA)

• Manufacturer / Brand
• Bogen (-Presto), David Co., Inc.; New York, NY / Paramus, NJ

• Year
• 1959 ?

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 158422

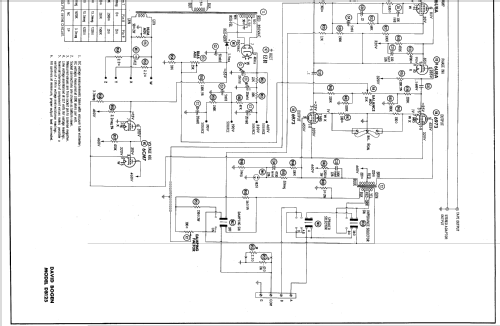

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• ECC83 ECC83 6U8A 6973 6973 6CM7 EZ81

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110 - 120 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 25 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org
• Model: DB125 - Bogen -Presto, David Co., Inc.

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 12 x 4 x 12 inch / 305 x 102 x 305 mm

• Notes
• The David Bogen Model DB125 is an AC operated 7 Tube 5 Channel Audio AMplifier.

• Net weight (2.2 lb = 1 kg)
• 18 lb 0 oz (18 lb) / 8.172 kg

• Price in first year of sale
• 99.50 $

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Date 4-59, Set 437, Folder 5)

• Literature/Schematics (2)
• Radio Shack Catalog (1959 page 11)

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
