Portable Transcription Player DP-16

Portable Transcription Player DP-16; Bogen, David Co., (ID = 582145) R-Player

Portable Transcription Player DP-16; Bogen, David Co., (ID = 582146) R-Player

Portable Transcription Player DP-16; Bogen, David Co., (ID = 582147) R-Player

Portable Transcription Player DP-16; Bogen, David Co., (ID = 582148) R-Player

Portable Transcription Player DP-16; Bogen, David Co., (ID = 582149) R-Player

Portable Transcription Player DP-16; Bogen, David Co., (ID = 582150) R-Player
Portable Transcription Player DP-16; Bogen, David Co., (ID = 582144) R-Player
Use red slider bar for more.
Portable Transcription Player DP-16; Bogen, David Co., (ID = 582144) R-Player
Bogen, David Co.,: Portable Transcription Player DP-16 [R-Player] ID = 582144 680x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Portable Transcription Player DP-16, Bogen, David Co., Inc.; New York (NY):
Sams Photofact Folders

Country:  United States of America (USA)
Manufacturer / Brand:  Bogen, David Co., Inc.; New York (NY)
Year: 1950 ? Category: Sound/Video Recorder and/or Player
Valves / Tubes 5: 6SL7GT 6SN7GT 6V6GT 6V6GT 5Y3GT
Main principle Audio-Amplification
Wave bands - without
Details Rec.Player+Audio.Amp+LS
Power type and voltage Alternating Current supply (AC) / 60 cycles, 117 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 inch = 25.4 cm
Power out 10 W (14 W max.)
from Radiomuseum.org Model: Portable Transcription Player DP-16 - Bogen, David Co., Inc.; New
Material Leather / canvas / plastic - over other material
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 18.5 x 12.25 x 20.25 inch / 470 x 311 x 514 mm
Notes

The Bogen DP-16 is a dual speed, high fidelity, portable transcription player. It employs a Bogen PH10 phono amplifier with a 10-inch Jensen speaker.  Its case is constructed of plywood and covered in heavy airplane cloth.

Price in first year of sale 170.75 USD

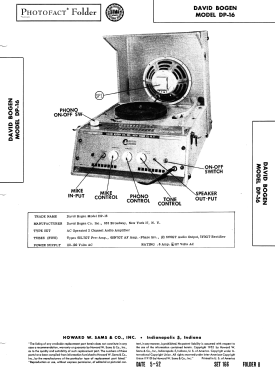

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Date 5-52, Set 166, Folder 8)
Literature/Schematics (2) Radio Master's Catalog, 15th ed., 1950-51, pg. B-28.

Model page created by Egon Penker. See "Data change" for further contributors.
