Multi-Range Amplifier PH10

Multi-Range Amplifier PH10; Bogen, David Co., (ID = 582536) Ampl/Mixer

Multi-Range Amplifier PH10; Bogen, David Co., (ID = 582537) Ampl/Mixer

Multi-Range Amplifier PH10; Bogen, David Co., (ID = 582538) Ampl/Mixer

Multi-Range Amplifier PH10; Bogen, David Co., (ID = 582539) Ampl/Mixer
Multi-Range Amplifier PH10; Bogen, David Co., (ID = 766597) Ampl/Mixer Multi-Range Amplifier PH10; Bogen, David Co., (ID = 766598) Ampl/Mixer
Multi-Range Amplifier PH10; Bogen, David Co., (ID = 766599) Ampl/Mixer Multi-Range Amplifier PH10; Bogen, David Co., (ID = 766602) Ampl/Mixer
Multi-Range Amplifier PH10; Bogen, David Co., (ID = 582535) Ampl/Mixer
Use red slider bar for more.
Multi-Range Amplifier PH10; Bogen, David Co., (ID = 766597) Ampl/Mixer
Bogen, David Co.,: Multi-Range Amplifier PH10 [Ampl/Mixer] ID = 766597 933x577
Select picture or schematic to display from thumbnails on the right and click for download.
For model Multi-Range Amplifier PH10, Bogen, David Co., Inc.; New York (NY):
aus ebay, mit Erlaubnis des Verkäufers urbanradio

Country:  United States of America (USA)
Manufacturer / Brand:  Bogen, David Co., Inc.; New York (NY)
Year: 1949 Category: Audio Amplifier or -mixer
Valves / Tubes 4: 6SL7GT 6V6GT 6V6GT 5Y3GT
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 60 cycles, 117 Volt
Loudspeaker - This model requires external speaker(s).
Power out 10 W (14 W max.)
from Radiomuseum.org Model: Multi-Range Amplifier PH10 - Bogen, David Co., Inc.; New

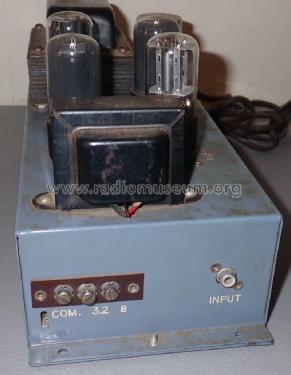

Material Metal case, TUBES VISIBLE
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 11 x 6 x 3 inch / 279 x 152 x 76 mm
Notes The Bogen Model PH10 is an AC operated 4 Tubes Audio Amplifier.
Price in first year of sale 51.25 USD
Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Date 10-49, Set 73, Folder 3)
Literature/Schematics (2) Radio Master's Catalog, 15th ed., 1950-51, pg. B-28.

Model page created by Egon Penker. See "Data change" for further contributors.
