• Country
• United States of America (USA)

• Manufacturer / Brand
• Bogen (-Presto), David Co., Inc.; New York, NY / Paramus, NJ

• Year
• 1960 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 224259

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 19

• Valves / Tubes
• 6AB4 12AT7 6BE6 6BA6 6AU6 6AU6 EM84 12AU7 6BL8 12AT7 Neon_Indicator ECC83 ECC83 ECC83 ECC83 ECC83 7408 7408 7408 7408

• Main principle
• Superhet with RF-stage

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Metal case

• from Radiomuseum.org

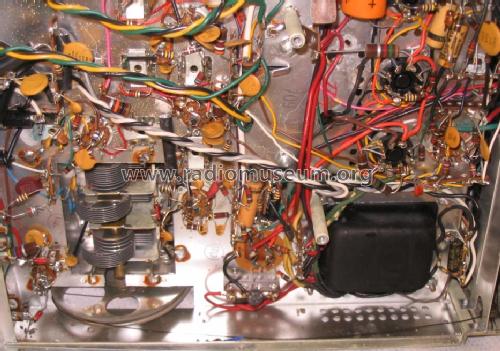

• Model: RP 230 - Bogen -Presto, David Co., Inc.

• Shape
• Chassis only or for «building in»

• Notes

• Receiver; with "Stereo Minder".

• Source of data
• -- Schematic

• Author
• Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
