Stereo Tape Amplifier ST10 (ST10G)

Stereo Tape Amplifier ST10 ; Bogen, David Co., (ID = 2470481) Ampl/Mixer

Stereo Tape Amplifier ST10 ; Bogen, David Co., (ID = 2470482) Ampl/Mixer

Stereo Tape Amplifier ST10 ; Bogen, David Co., (ID = 2470483) Ampl/Mixer

Stereo Tape Amplifier ST10 ; Bogen, David Co., (ID = 2470484) Ampl/Mixer

Stereo Tape Amplifier ST10 ; Bogen, David Co., (ID = 2470485) Ampl/Mixer

Stereo Tape Amplifier ST10 ; Bogen, David Co., (ID = 2470486) Ampl/Mixer
Stereo Tape Amplifier ST10 ; Bogen, David Co., (ID = 2079600) Ampl/Mixer Stereo Tape Amplifier ST10 ; Bogen, David Co., (ID = 2079601) Ampl/Mixer
Stereo Tape Amplifier ST10 ; Bogen, David Co., (ID = 2470480) Ampl/Mixer
Use red slider bar for more.
Stereo Tape Amplifier ST10 ; Bogen, David Co., (ID = 2079600) Ampl/Mixer
Bogen, David Co.,: Stereo Tape Amplifier ST10 [Ampl/Mixer] ID = 2079600 1400x1376
Select picture or schematic to display from thumbnails on the right and click for download.
For model Stereo Tape Amplifier ST10 (ST10G), Bogen, David Co., Inc.; New York (NY):
Popular Electronics February 1957 page 27

Country:  United States of America (USA)
Manufacturer / Brand:  Bogen, David Co., Inc.; New York (NY)
Year: 1956 Category: Audio Amplifier or -mixer
Valves / Tubes 7: ECC83 or 12AX7 6C4 ECC83 or 12AX7 6U8 6AQ5 6AQ5 EZ80 or 6V4
Main principle Audio-Amplification
Wave bands - without
Details Hi-Fi equipment
Power type and voltage Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: Stereo Tape Amplifier ST10 - Bogen, David Co., Inc.; New
Material Metal case
Shape Tablemodel, with any shape - general.
Notes

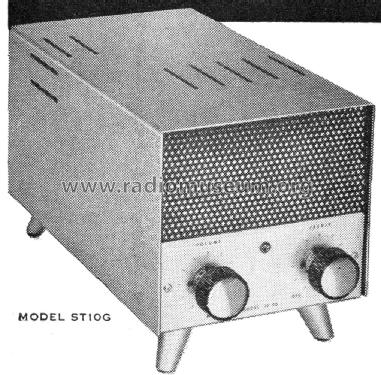

David Bogen model ST10 is an AC operated Audio amplifier with 2 channel preamp and 1 output amplifier. It was available as a chassis (ST10, $52.50) or with the metal cabinet with legs (ST10G, $59.50).

Price in first year of sale 59.50 USD
Mentioned in Popular Electronics February 1957 page 27
Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Set 378 Folder 6 dated 11-57)

Model page created by Wayne Childress. See "Data change" for further contributors.
